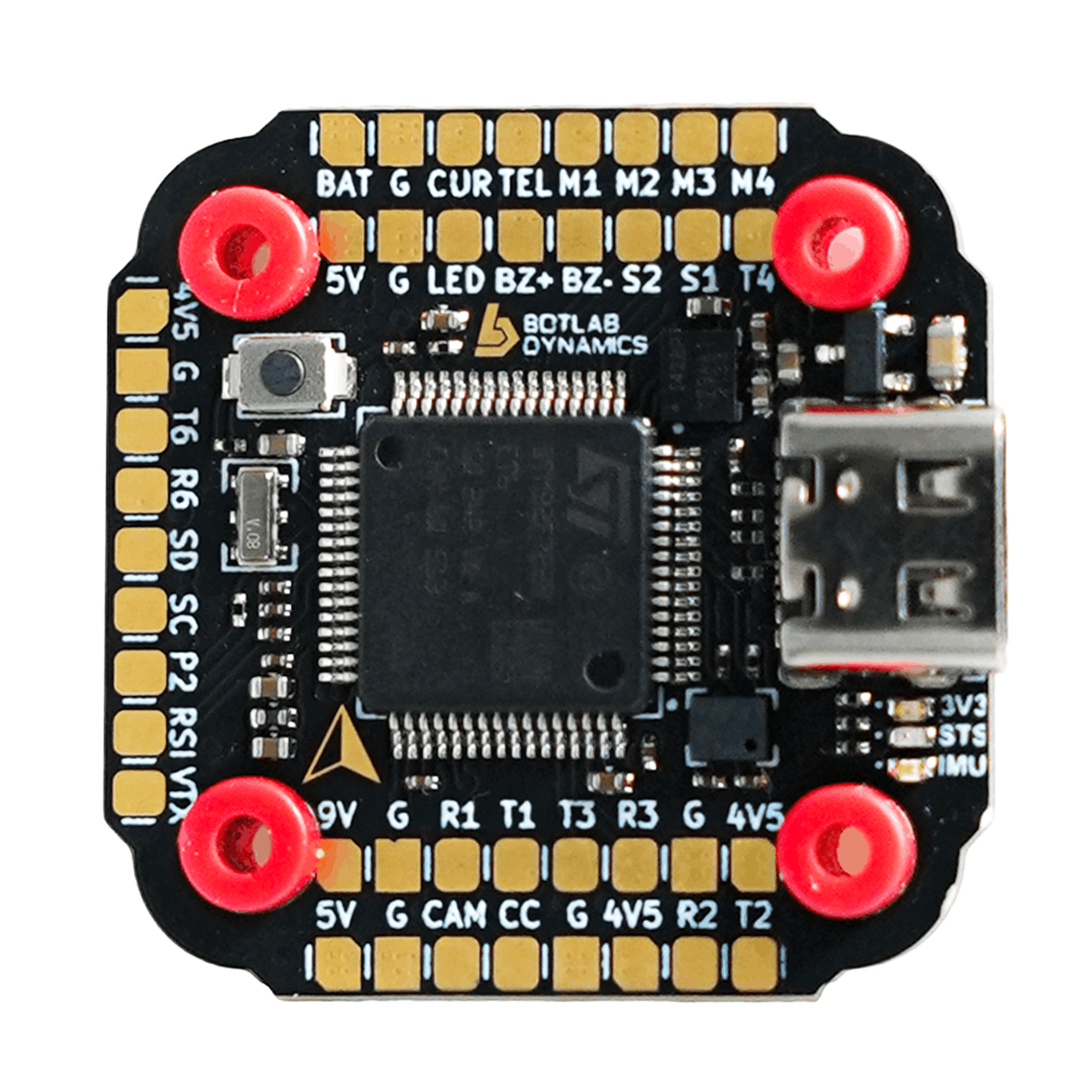

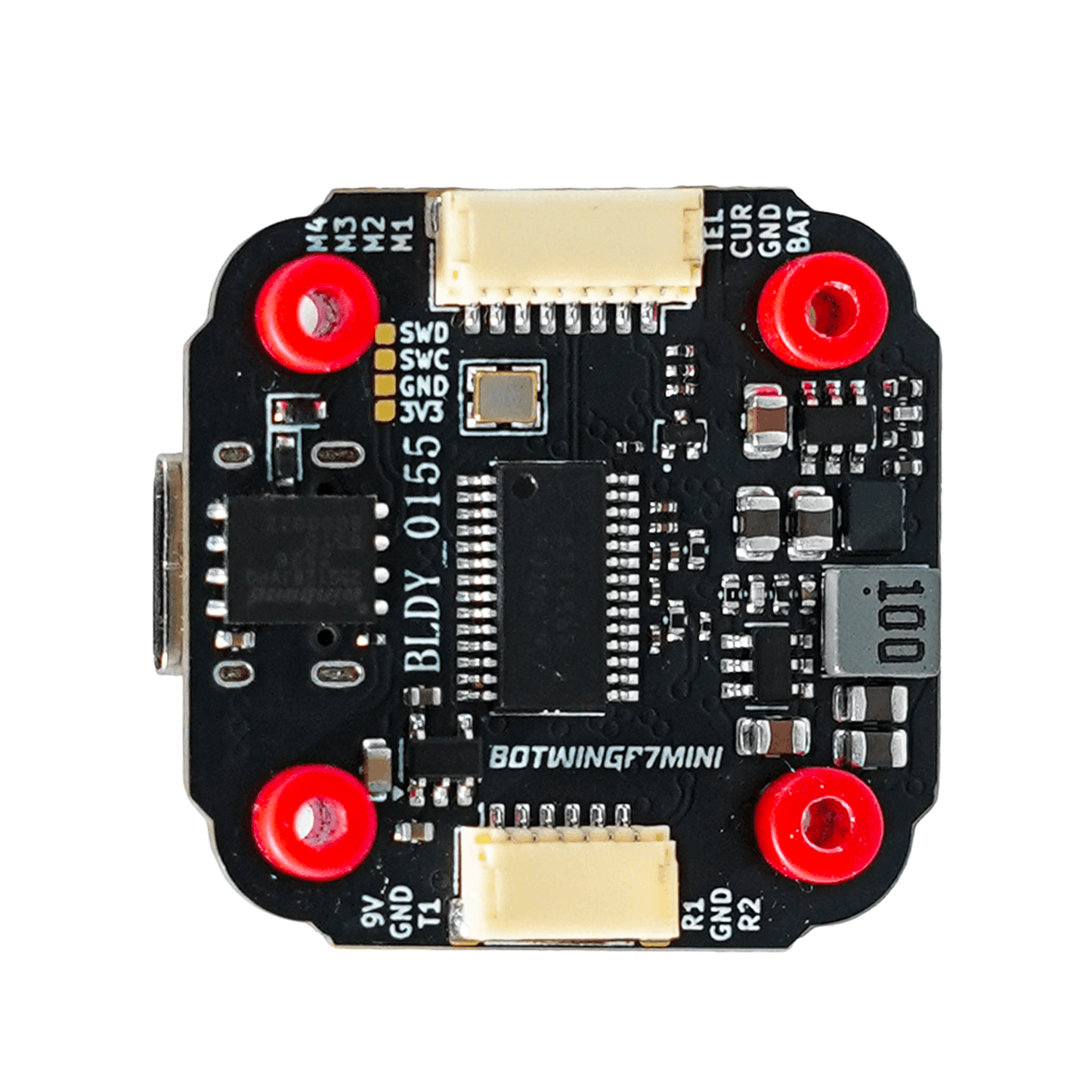

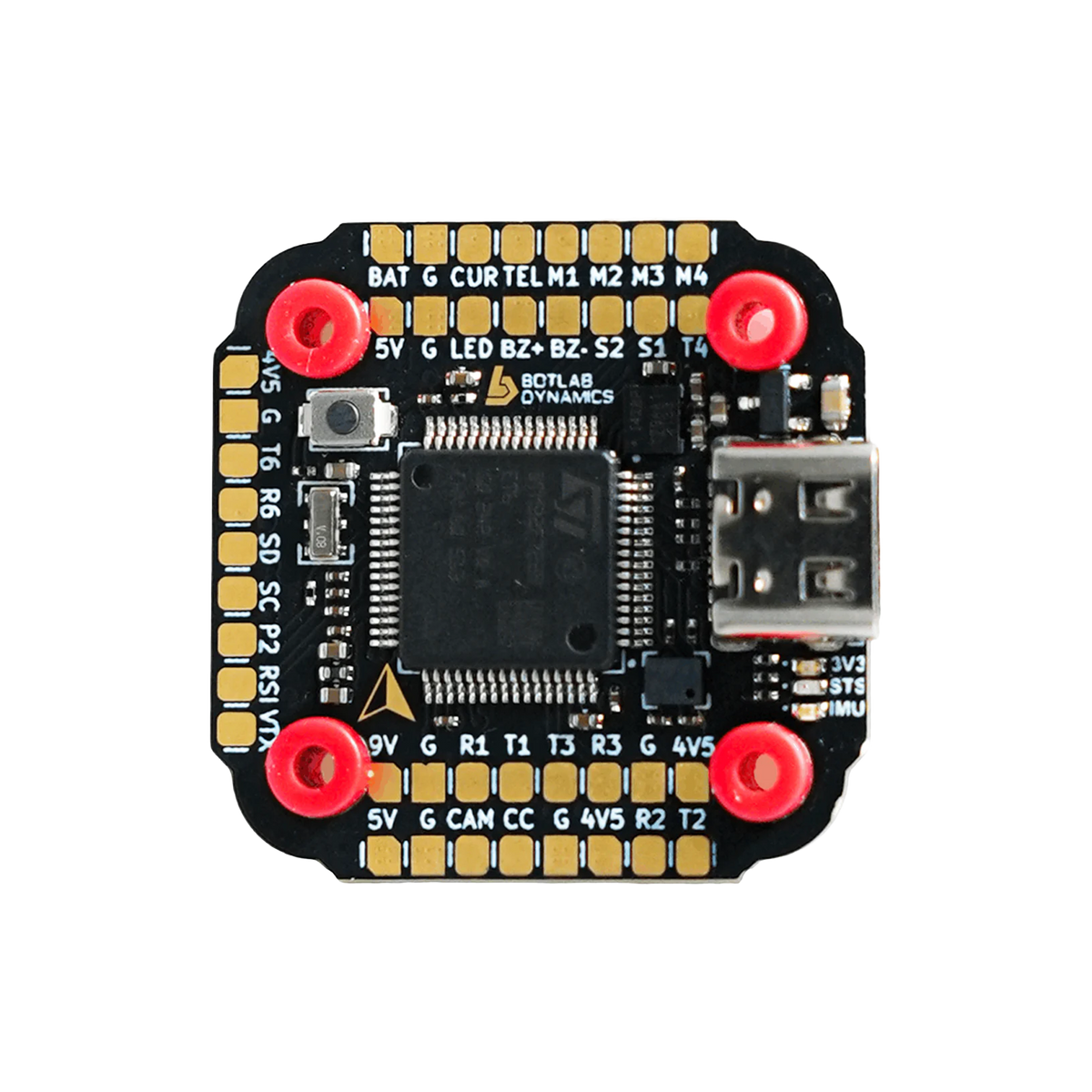

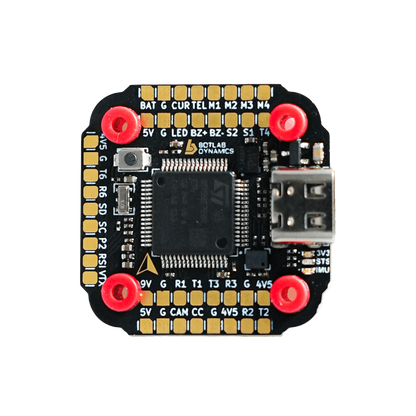

About F722 Mini
Power meets precision with the BotWing F722 Mini, the elite flight controller for pilots who demand total control. Built with a powerful STM32F722 MCU and an ICM42688P IMU, the F722 Mini offers expanded capabilities, including four motor outputs and two servo outputs, making it ideal for advanced drone configurations.
Offering full compatibility with BetaFlight and iNav, the BotWing F722 Mini unlocks powerful options for every flight. Its robust telemetry, 16 MB onboard Blackbox, plug-and-play DJI Air Unit port, and 5-UART layout make it the perfect brain for a serious drone build.
Whether you're racing, exploring, mapping, or executing precision flights, the BotWing F722 Mini ensures flawless execution and endless potential, all housed within a clean 20x20mm hole-to-hole mounting pattern.
FAQs
Does the F722 Mini use the same processor as a full-size F722 board?
Yes. The F722 Mini uses the same 32-bit STM32F722 processor found on standard full-size F722 flight controllers.
Is there any performance difference compared to a full-size F722 board?
No. Processing performance is the same. Flight behaviour depends on tuning and firmware, not board size.
How many UART ports does the F722 MINI support?
The F722 MINI supports 5 UART ports for connecting multiple peripherals.
Can GPS, ELRS, and FPV systems be used at the same time?
Yes. The available UARTs allow simultaneous use of GPS, radio receiver, FPV system, telemetry, and additional modules.
Does the F722 MINI support servo outputs?
Yes. The board supports 2 dedicated servo outputs, suitable for pan-tilt systems, control surfaces, or custom UAV setups.
What is the mounting size of the F722 MINI?
It uses a 20 × 20 mm hole-to-hole mounting pattern, designed for compact and modern FPV frames.
How does its size compare to a standard full-size F722 board?
Standard F722 boards use a 30.5 × 30.5 mm mounting pattern, making the F722 MINI 57% smaller in footprint.
What is the difference between hole-to-hole and edge-to-edge size?
Hole-to-hole refers to mounting spacing, while edge-to-edge is the physical PCB size. The F722 MINI is smaller in both dimensions, allowing lighter and cleaner builds.
Does the F722 MINI include onboard memory?
Yes. It includes 16 MB of onboard flash memory for black box logging and flight analysis.
What is the operating temperature range of the F722 MINI?
The controller is rated for operation between −15°C and +85°C, suitable for varied flying environments.
Does the F722 MINI support FPV systems, including DJI O3?
Yes. The F722 MINI supports FPV systems, including DJI O3.
