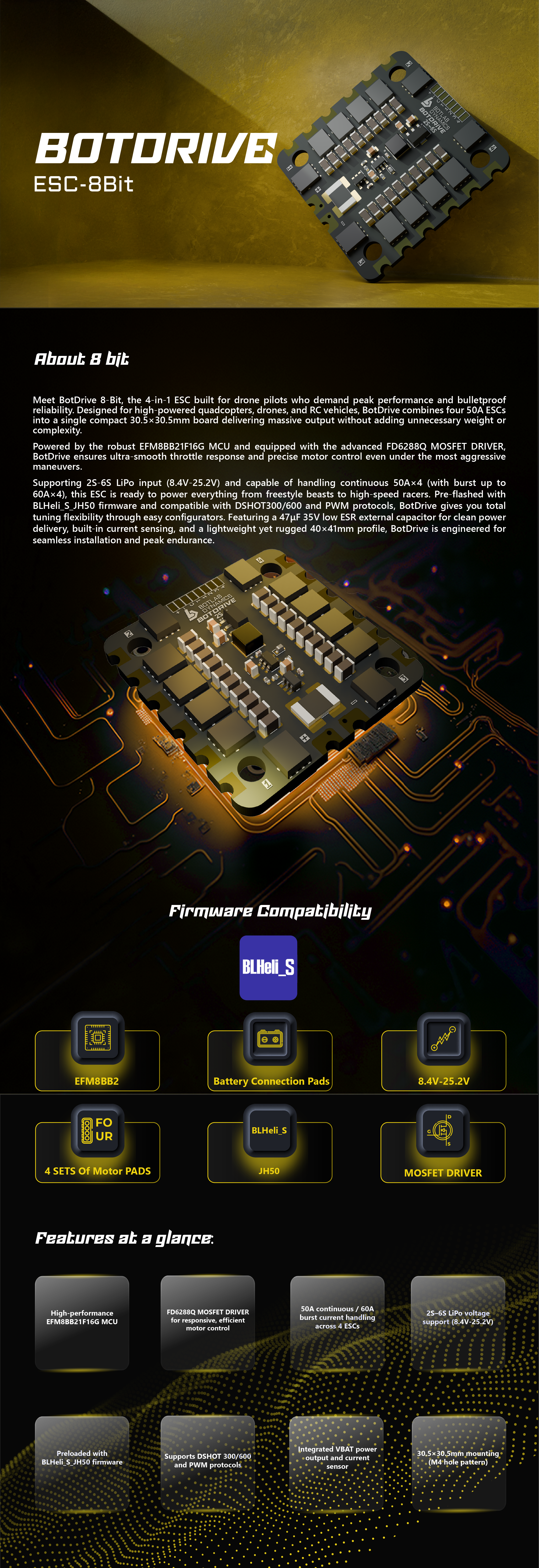

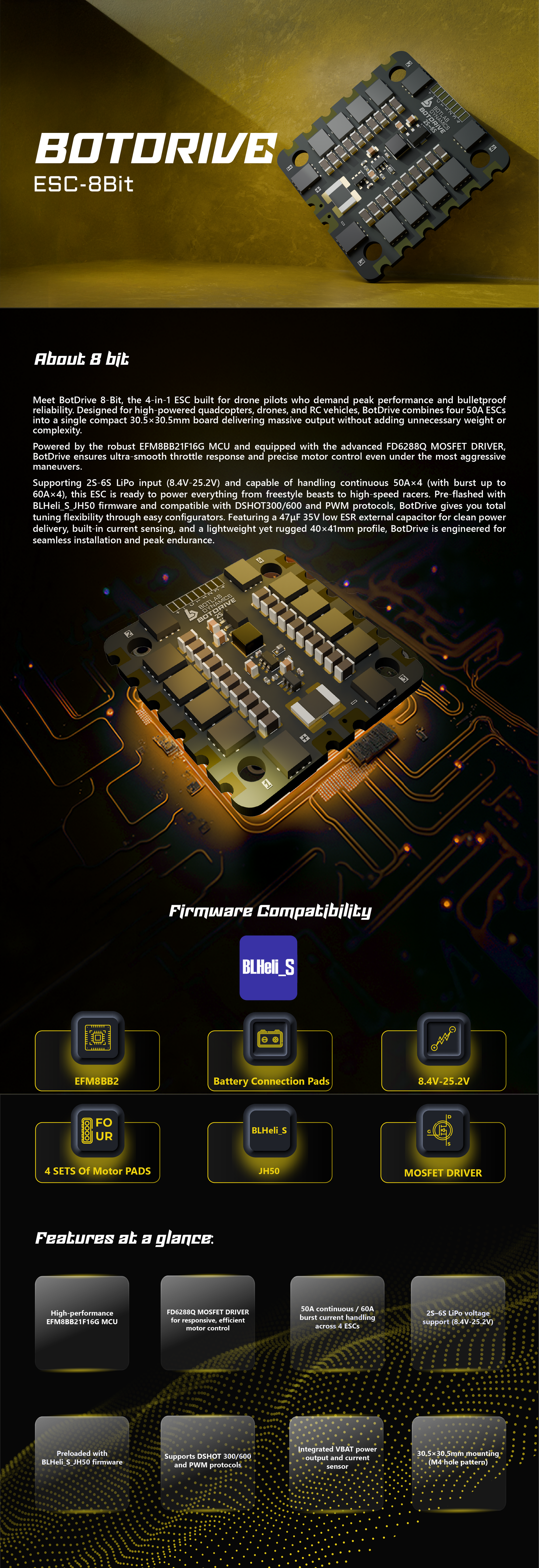

About ESC 8 Bit

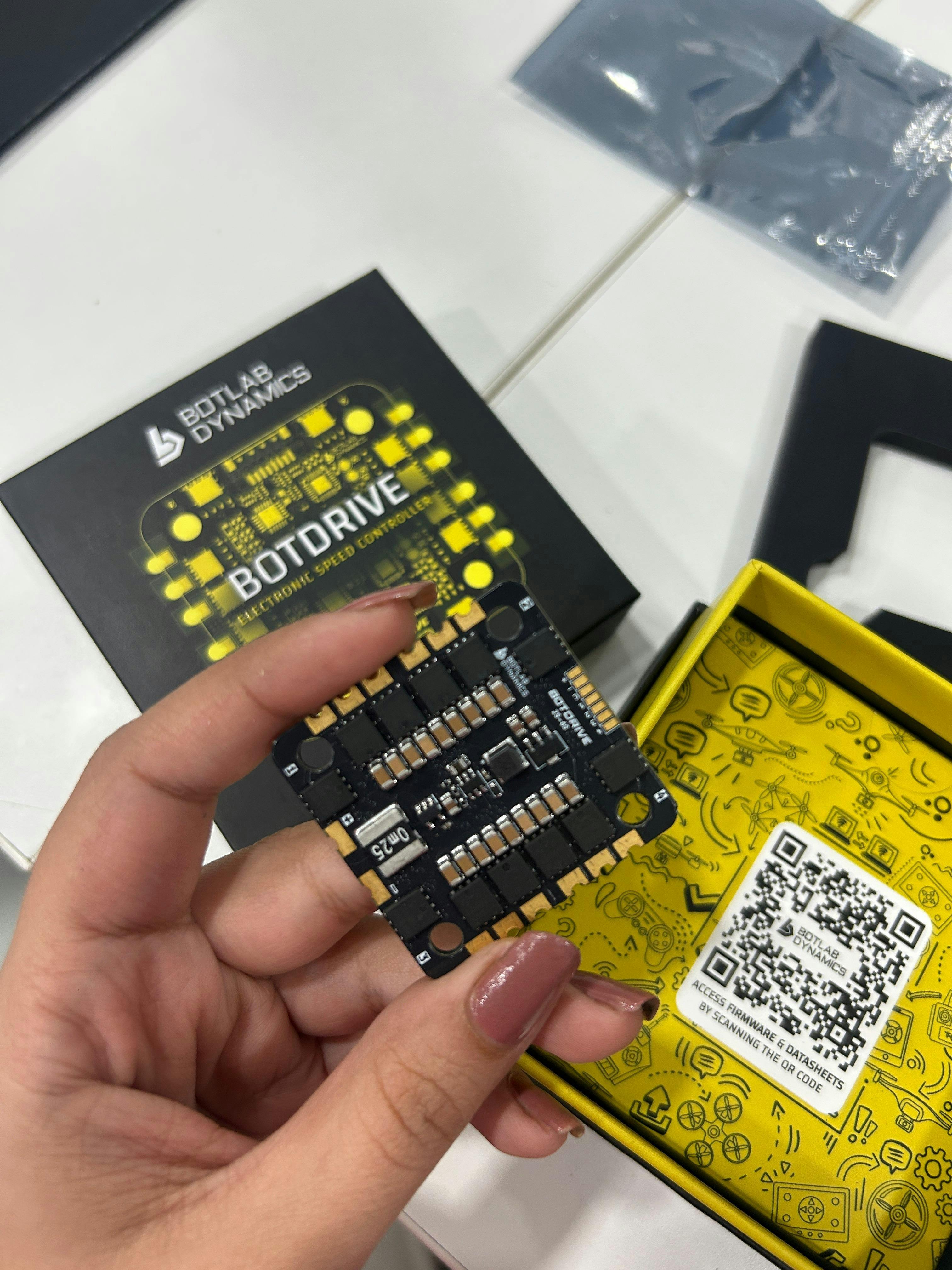

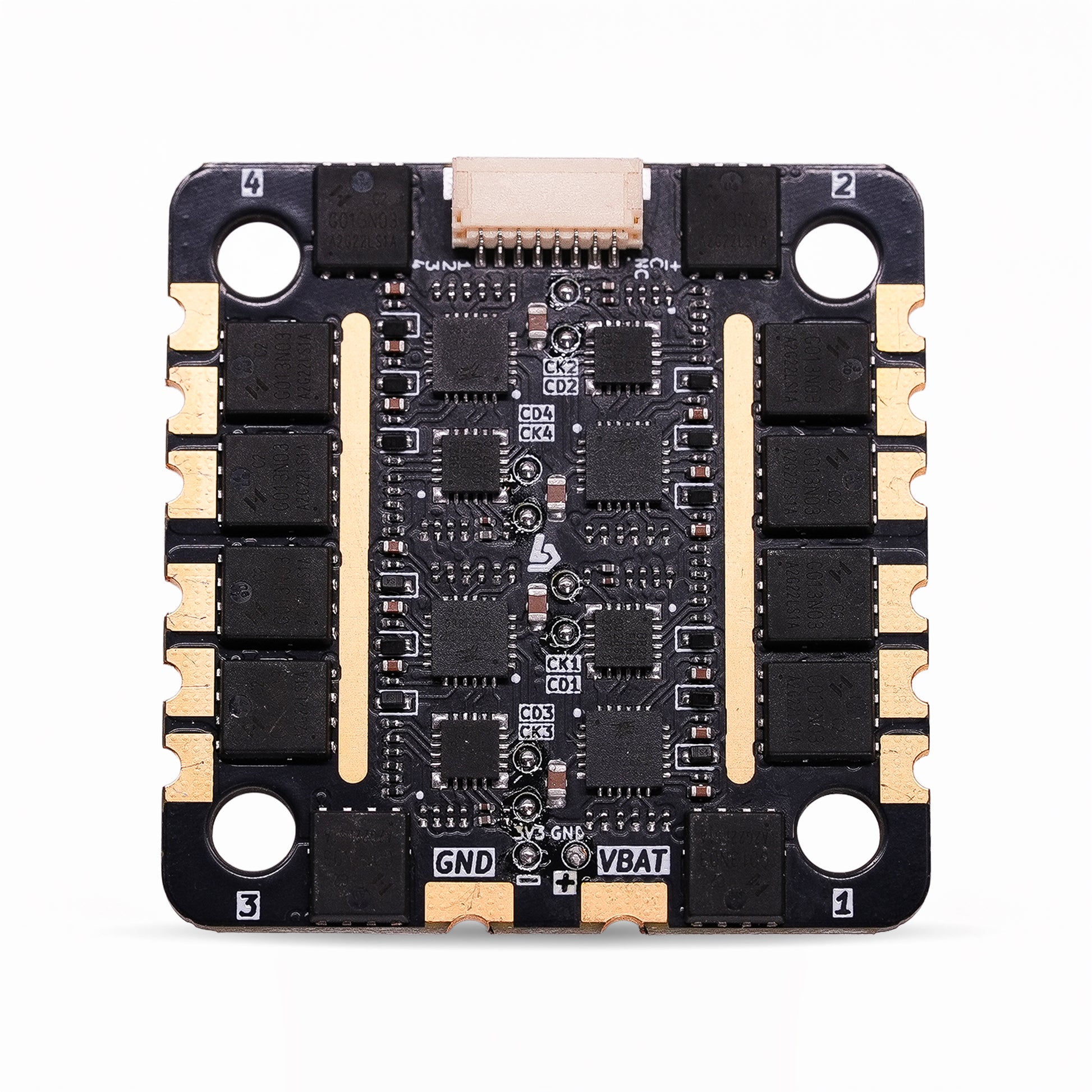

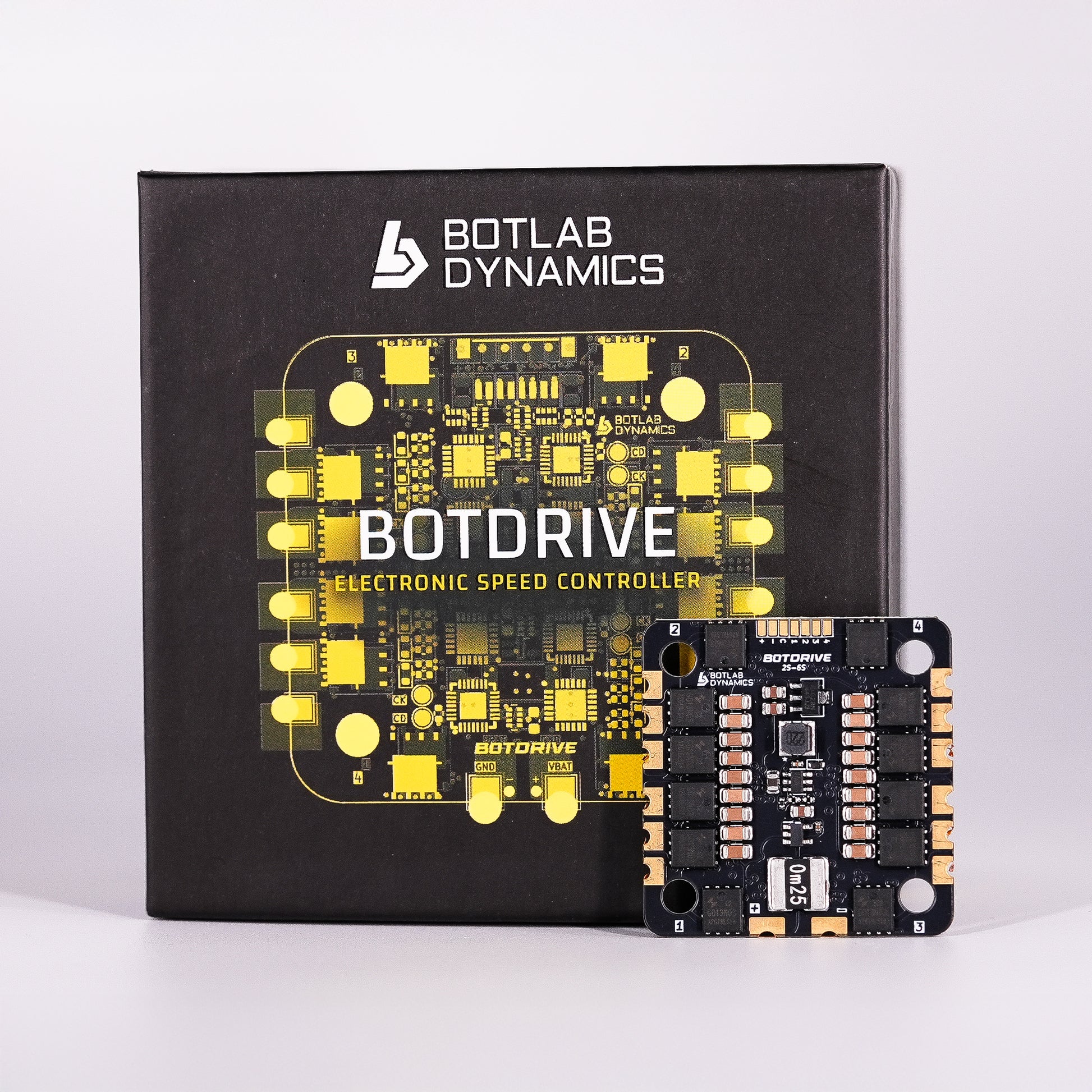

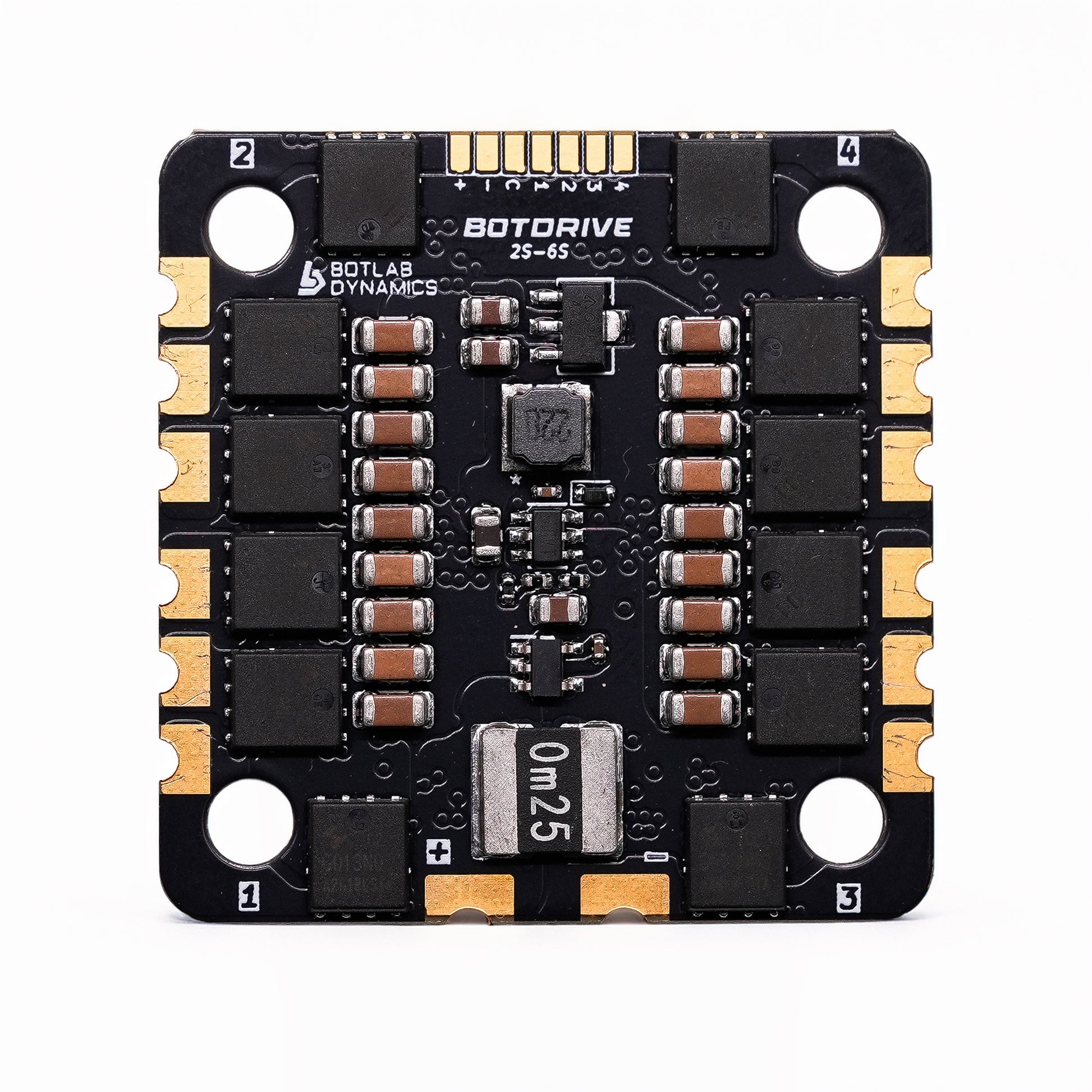

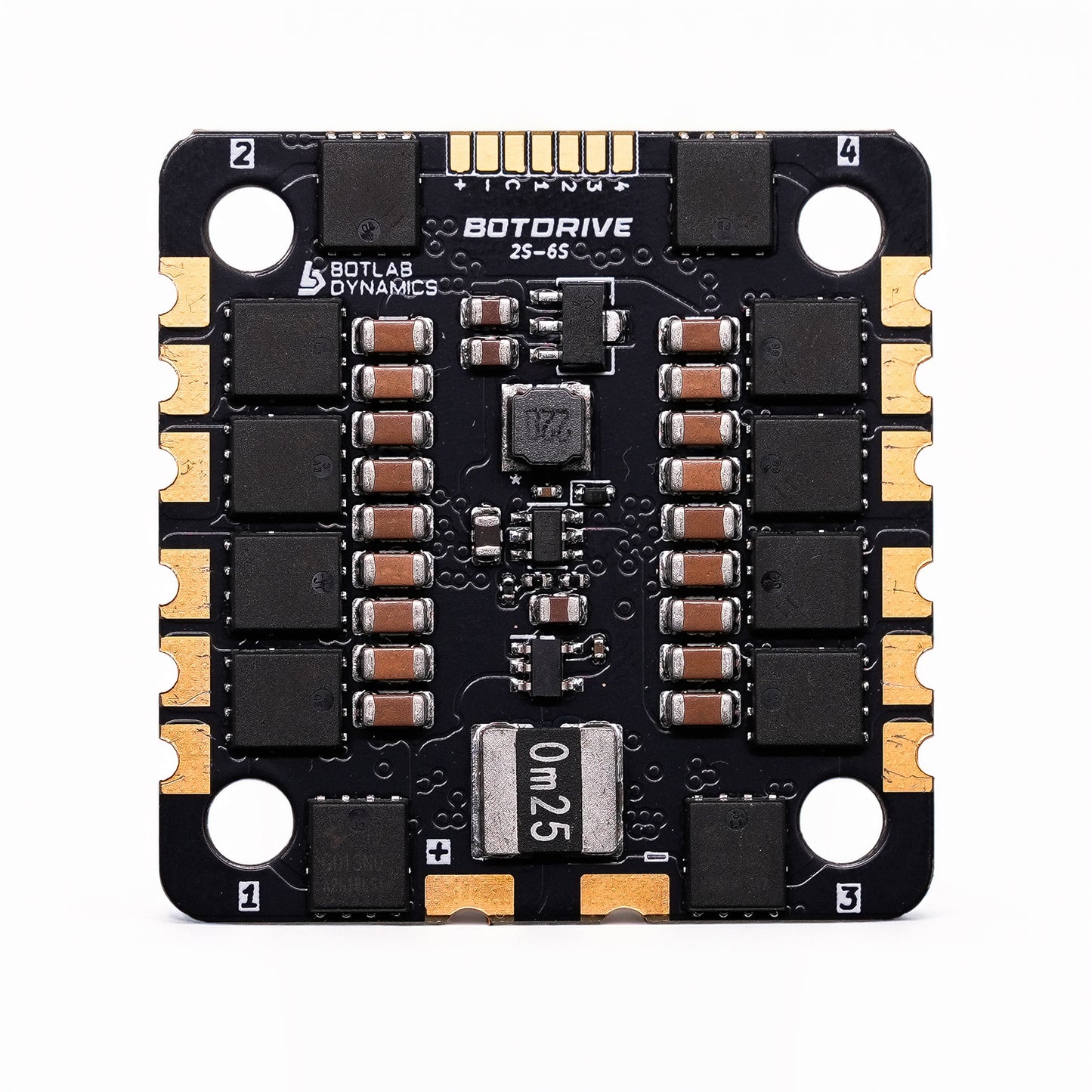

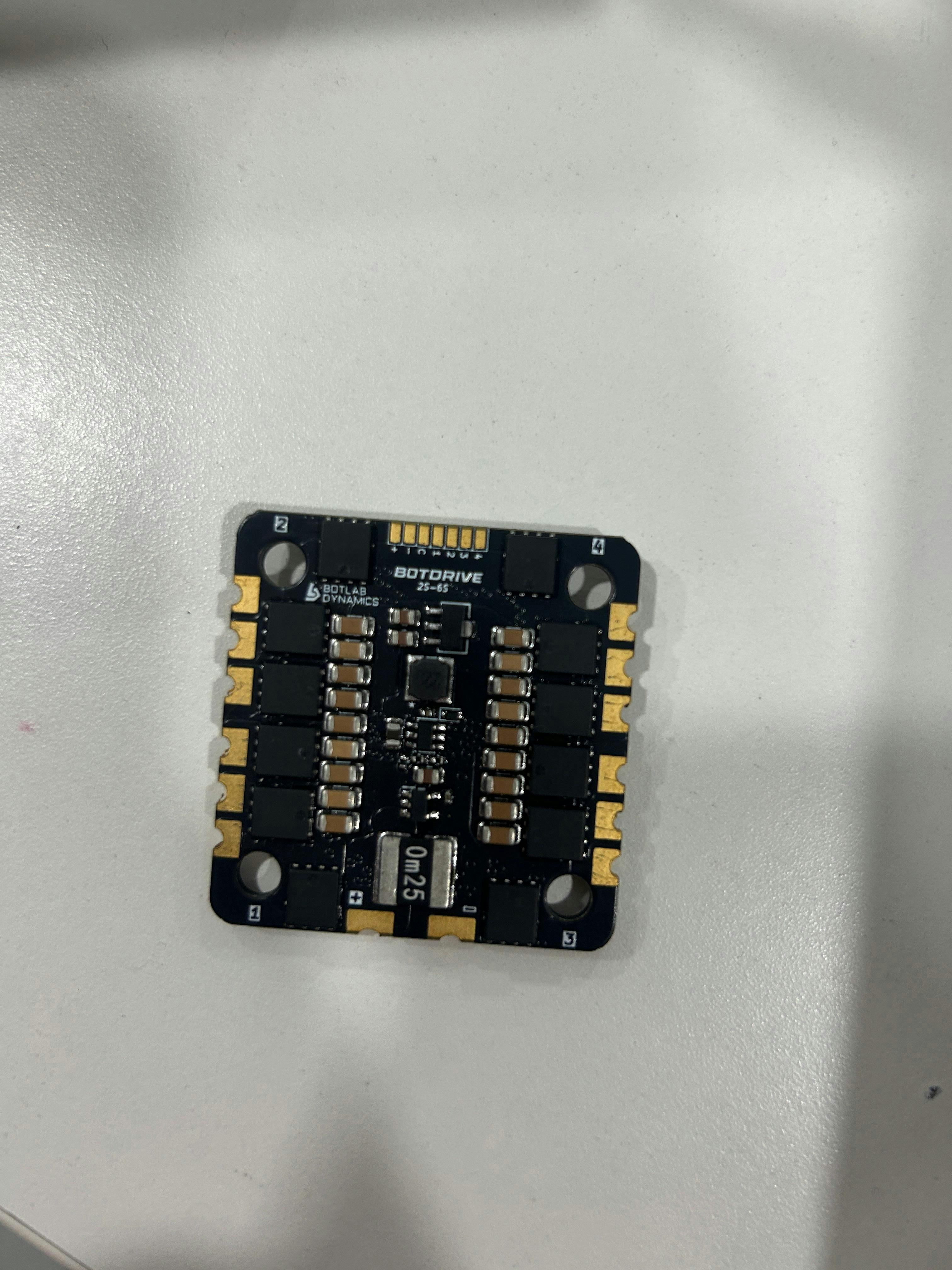

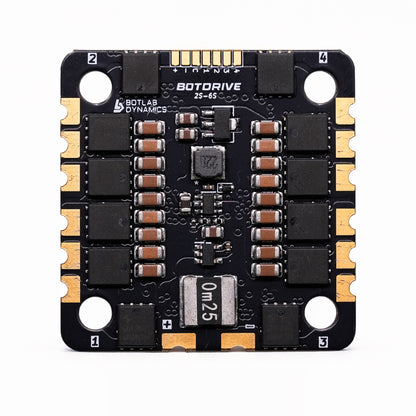

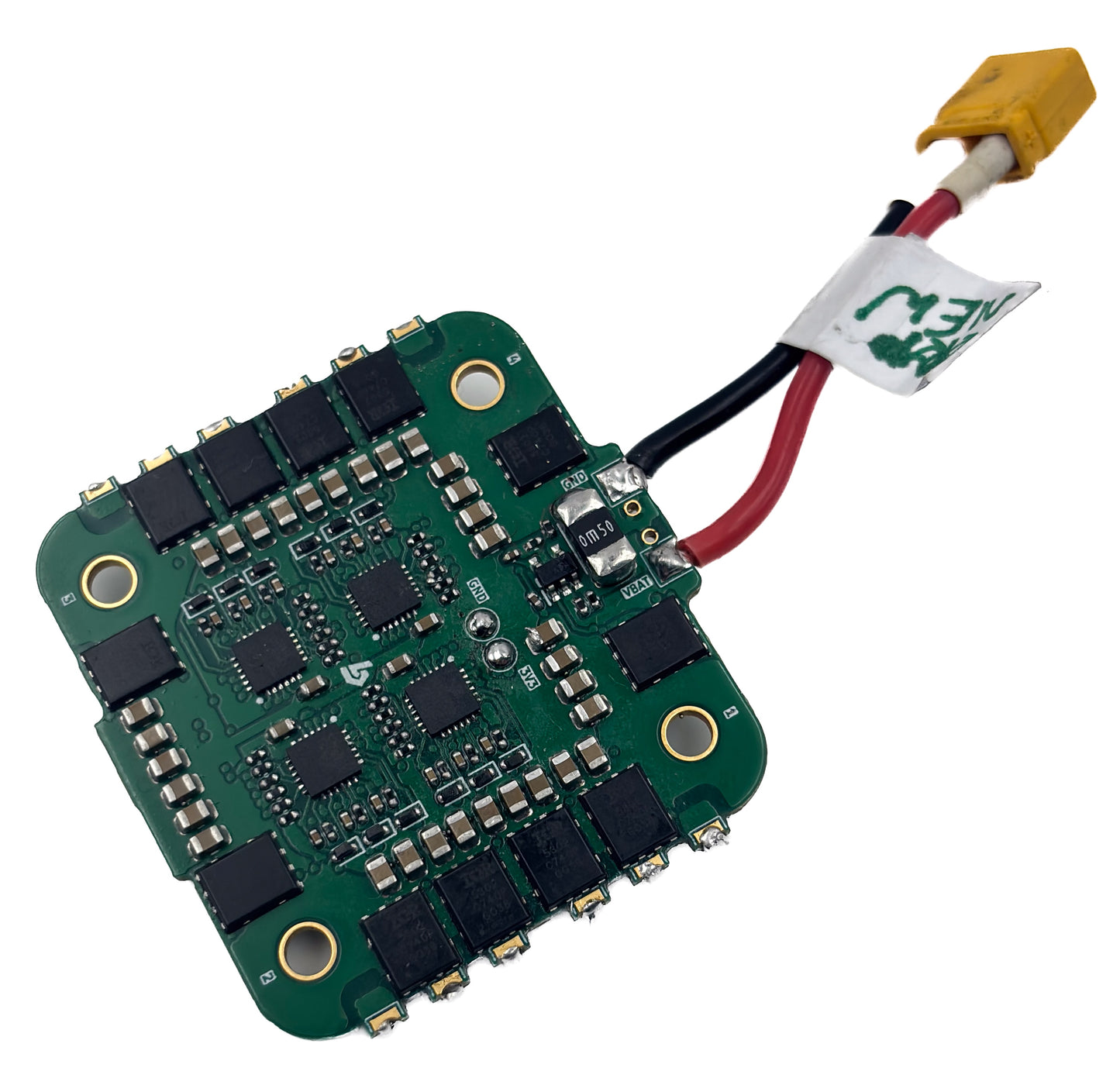

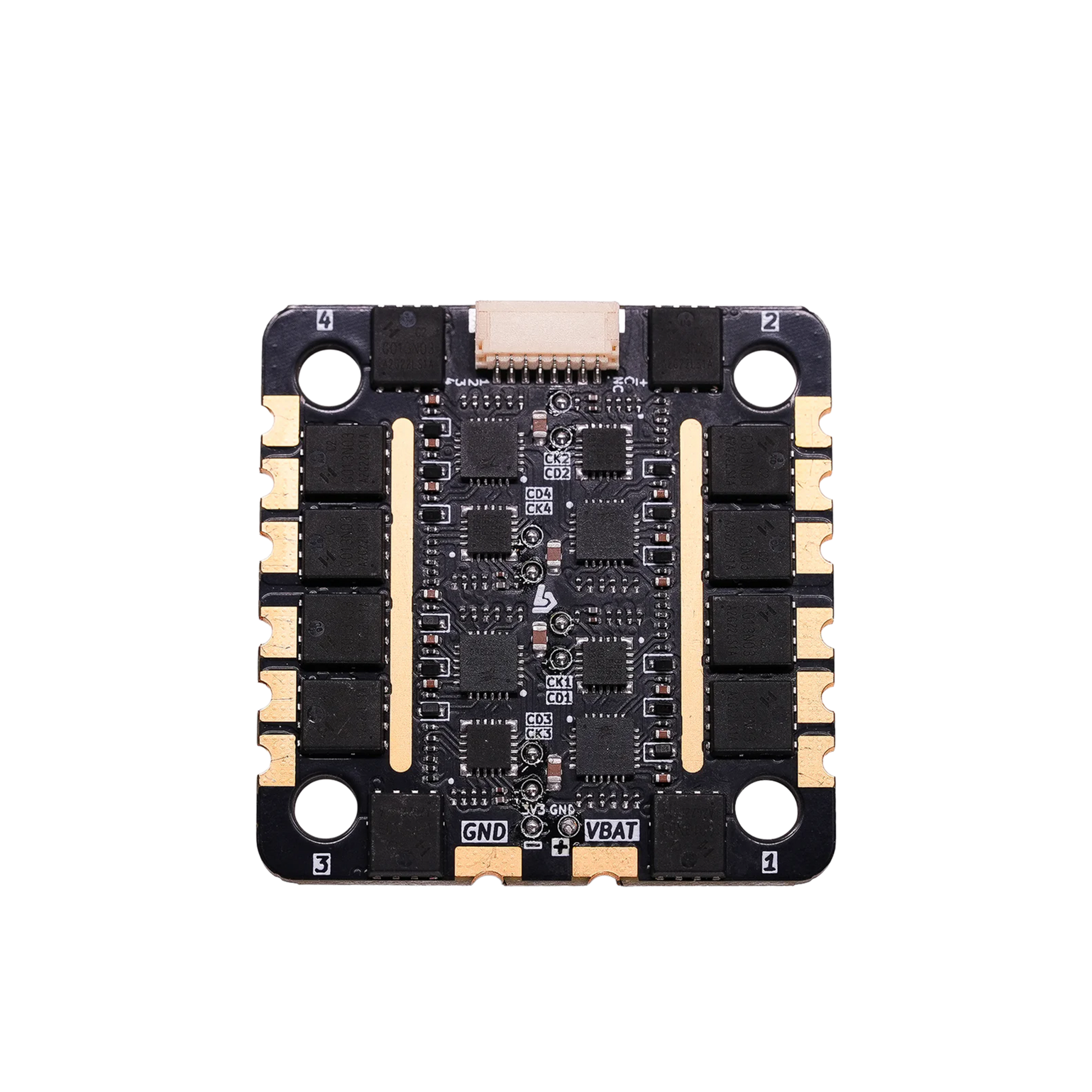

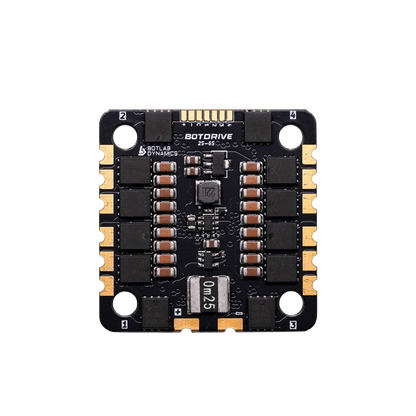

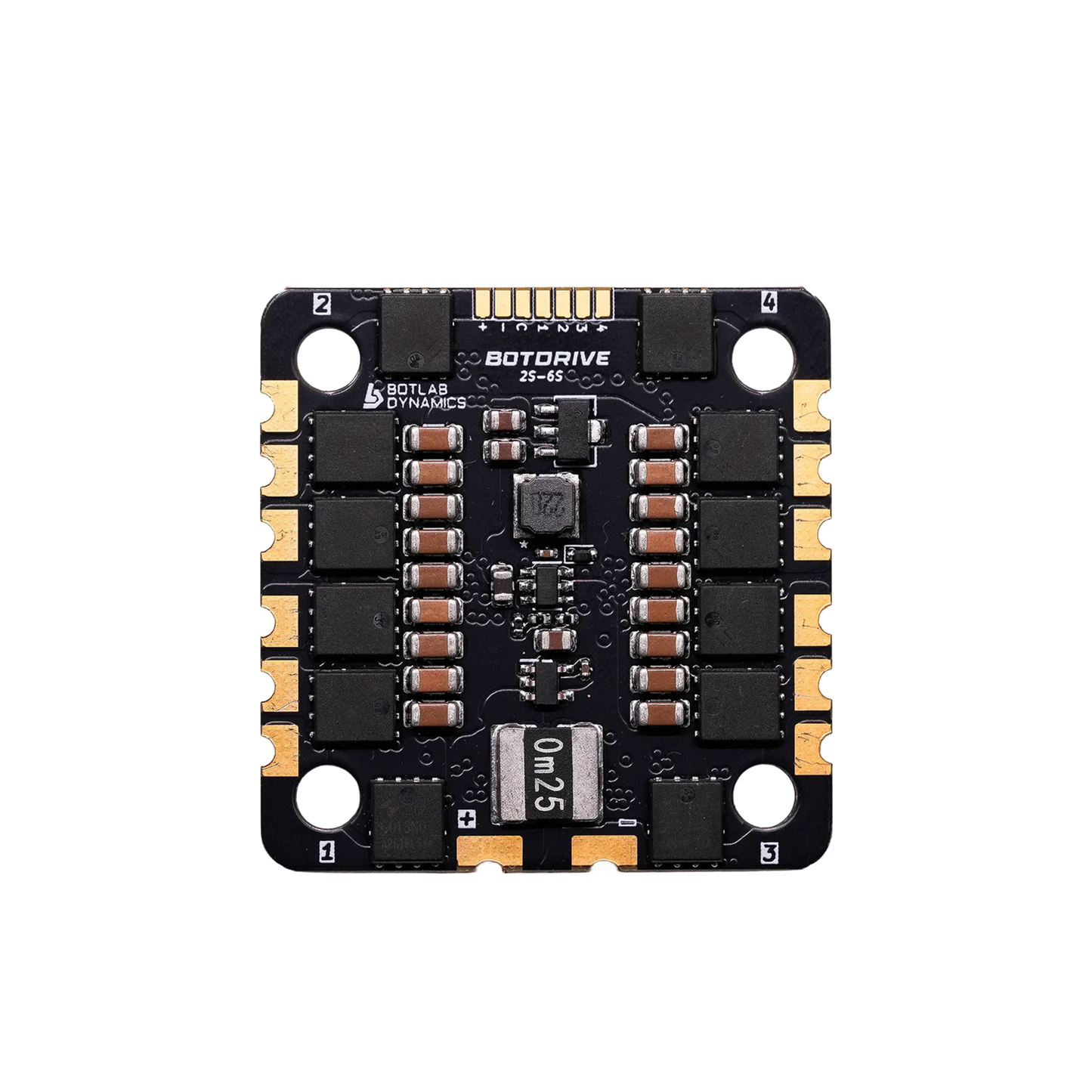

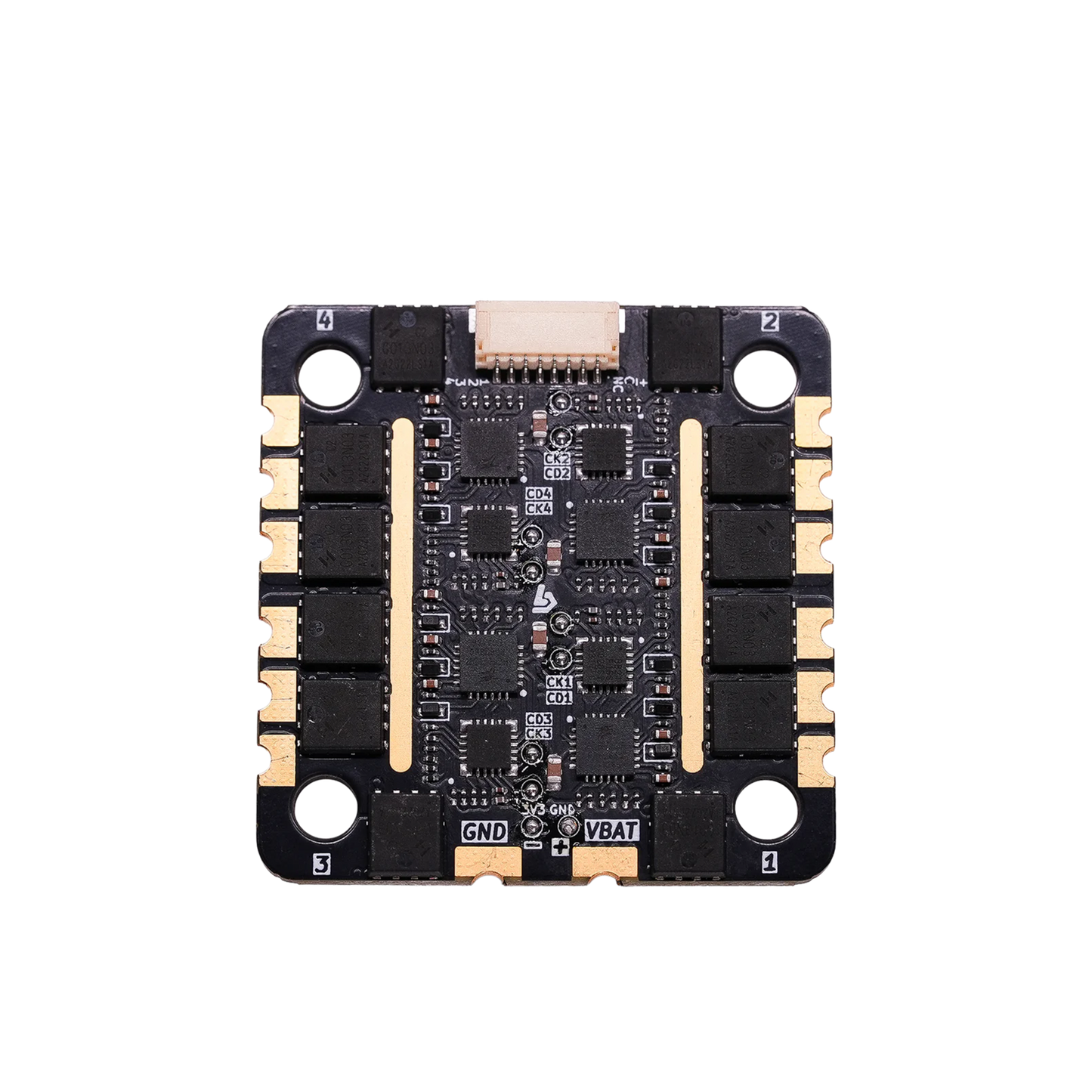

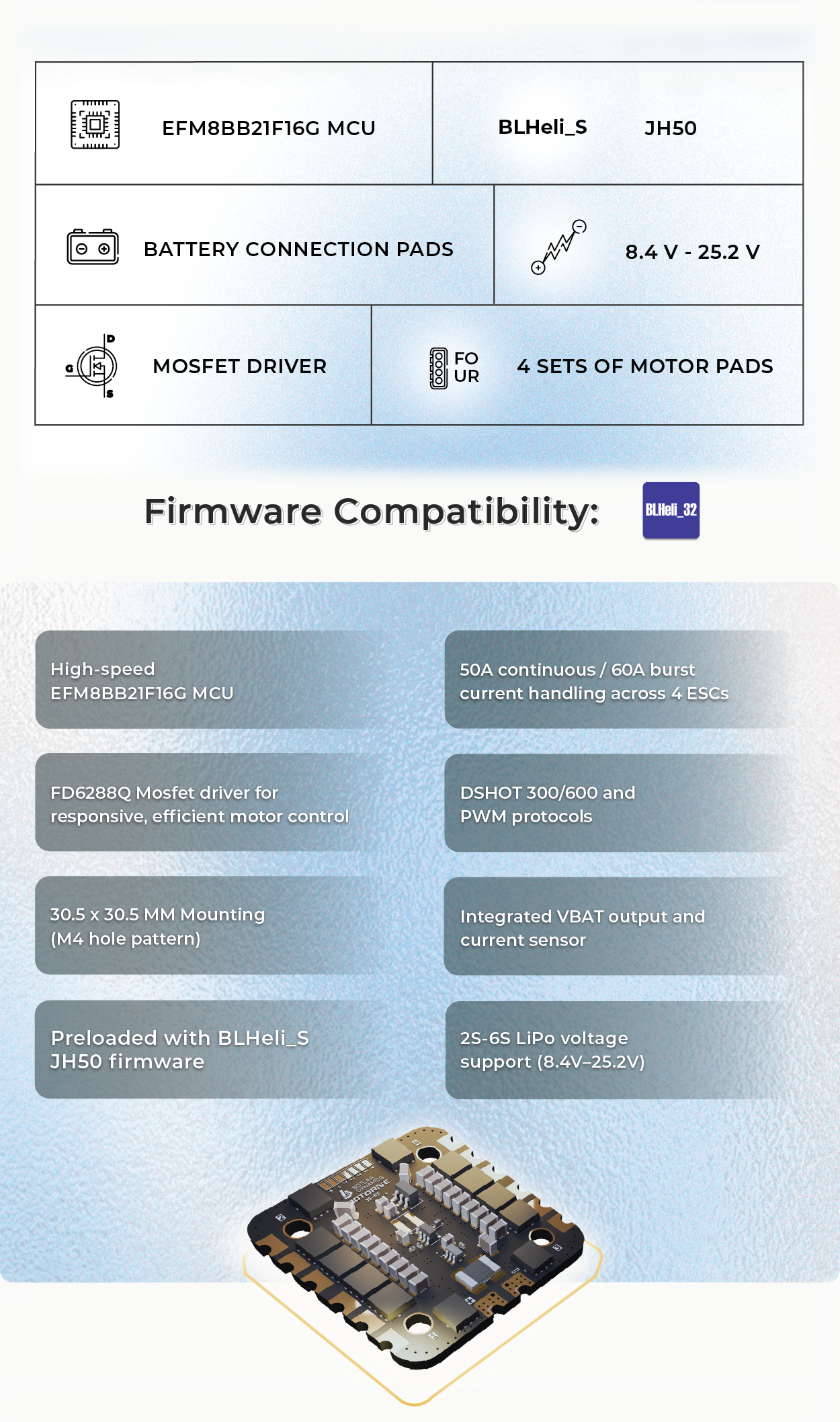

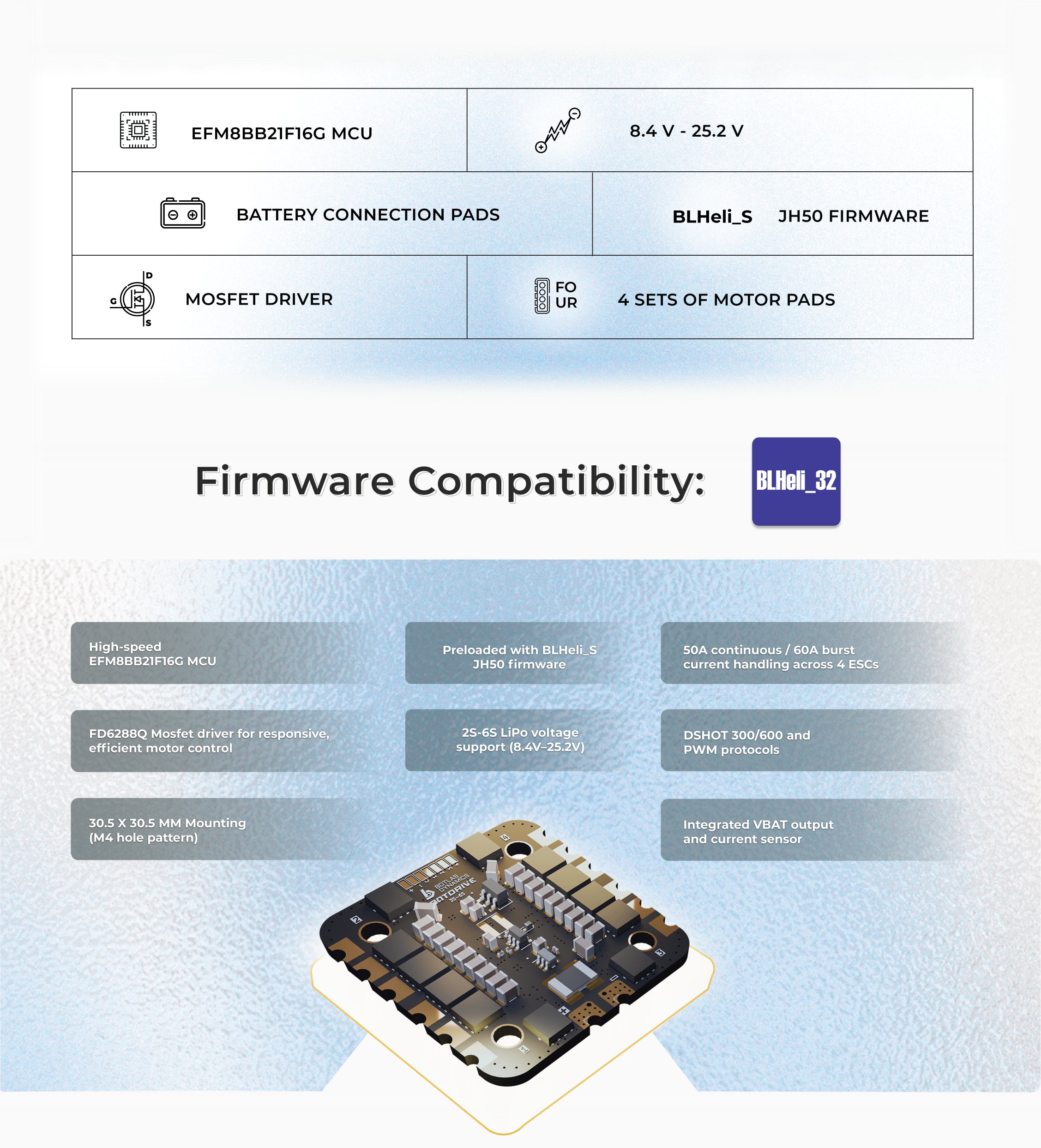

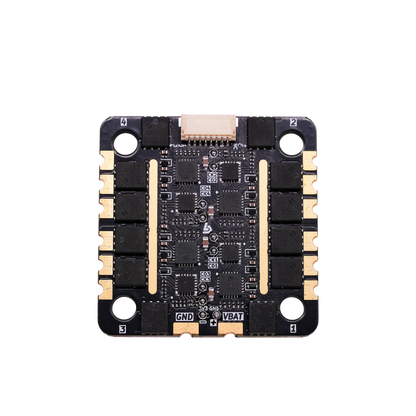

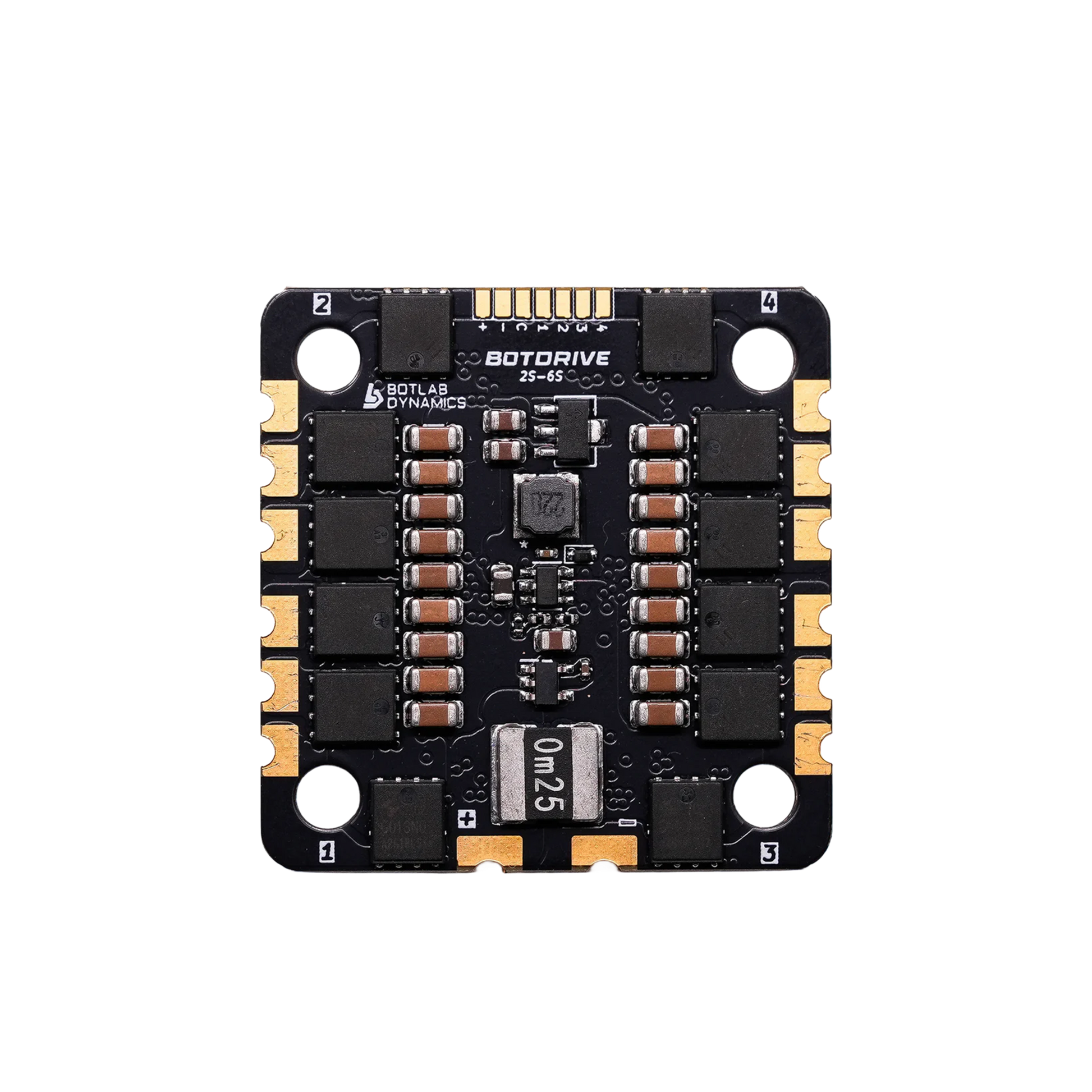

Meet BotDrive 8-Bit, the 4-in-1 ESC built for drone pilots who demand peak performance and bulletproof reliability. Designed for high-powered quadcopters, drones, and RC vehicles, BotDrive combines four 50A ESCs into a single compact 30.5×30.5mm board delivering massive output without adding unnecessary weight or complexity.
Powered by the robust EFM8BB21F16G MCU and equipped with the advanced FD6288Q MOSFET DRIVER, BotDrive ensures ultra-smooth throttle response and precise motor control even under the most aggressive maneuvers.
Supporting 2S-6S LiPo input (8.4V-25.2V) and capable of handling continuous 50A×4 (with burst up to 60A×4), this ESC is ready to power everything from freestyle beasts to high-speed racers. Pre-flashed with BLHeli_S_JH50 firmware and compatible with DSHOT300/600 and PWM protocols, BotDrive gives you total tuning flexibility through easy configurators. Featuring a 47μF 35V low ESR external capacitor for clean power delivery, built-in current sensing, and a lightweight yet rugged 40×41mm profile, BotDrive is engineered for seamless installation and peak endurance.
FAQs
What is the continuous current rating?
Continuous current: 50A per ESC.
What is the burst current rating?
Burst current: 60A per ESC.
What is the input voltage range?
This ESC supports 2-6S LiPo batteries (8.4V to 25.2V).
What microcontroller (MCU) does it use?
EFM8BB21F16G 8-bit MCU.
What firmware does it run?
The ESC runs BLHeli firmware, configurable via BLHeli Suite or Configurator.
Which protocols are supported?
Supports DSHOT 300/600 and PWM protocols.
What is the mounting pattern?
Standard 30.5 × 30.5 mm (M3) mounting holes.
What is the board size?
40 × 41 mm.
What is the weight?
Approximately 12.5 grams.

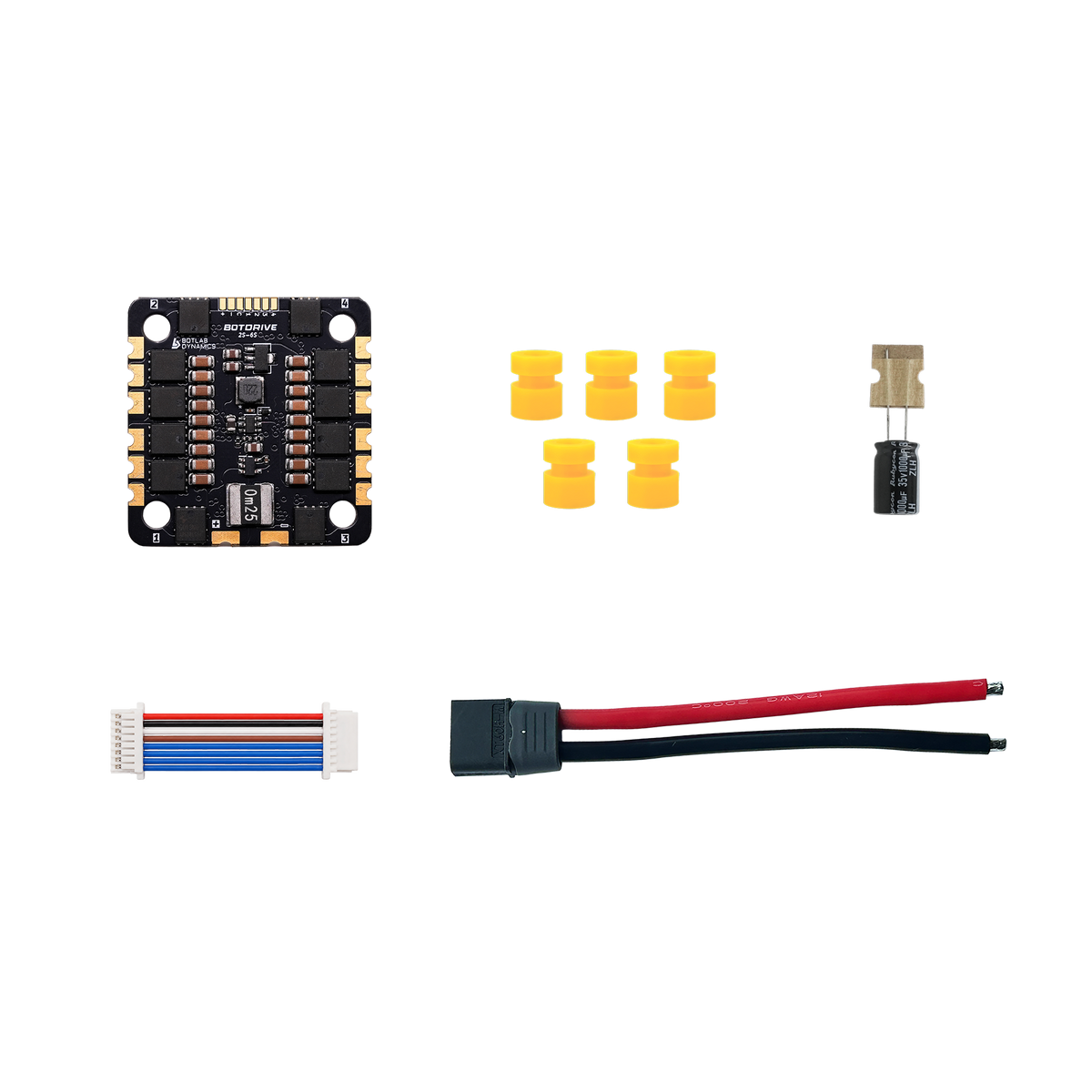

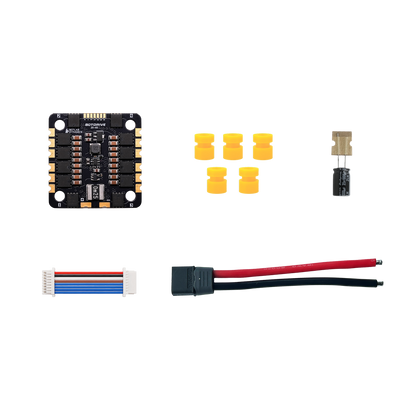

What accessories are included?
Comes with a 1000 µF capacitor, XT60 cable, grommets, and JST-SH cable.
