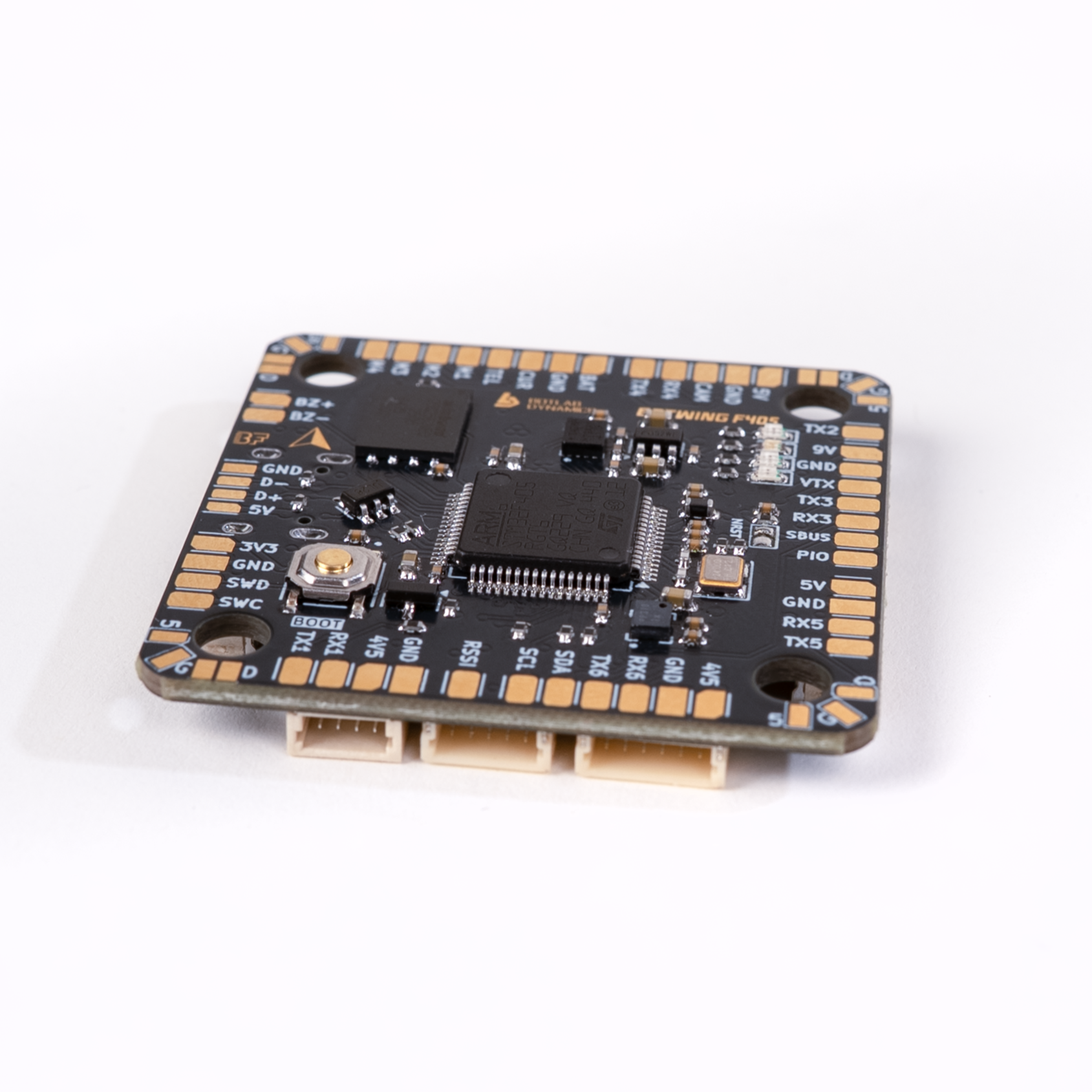

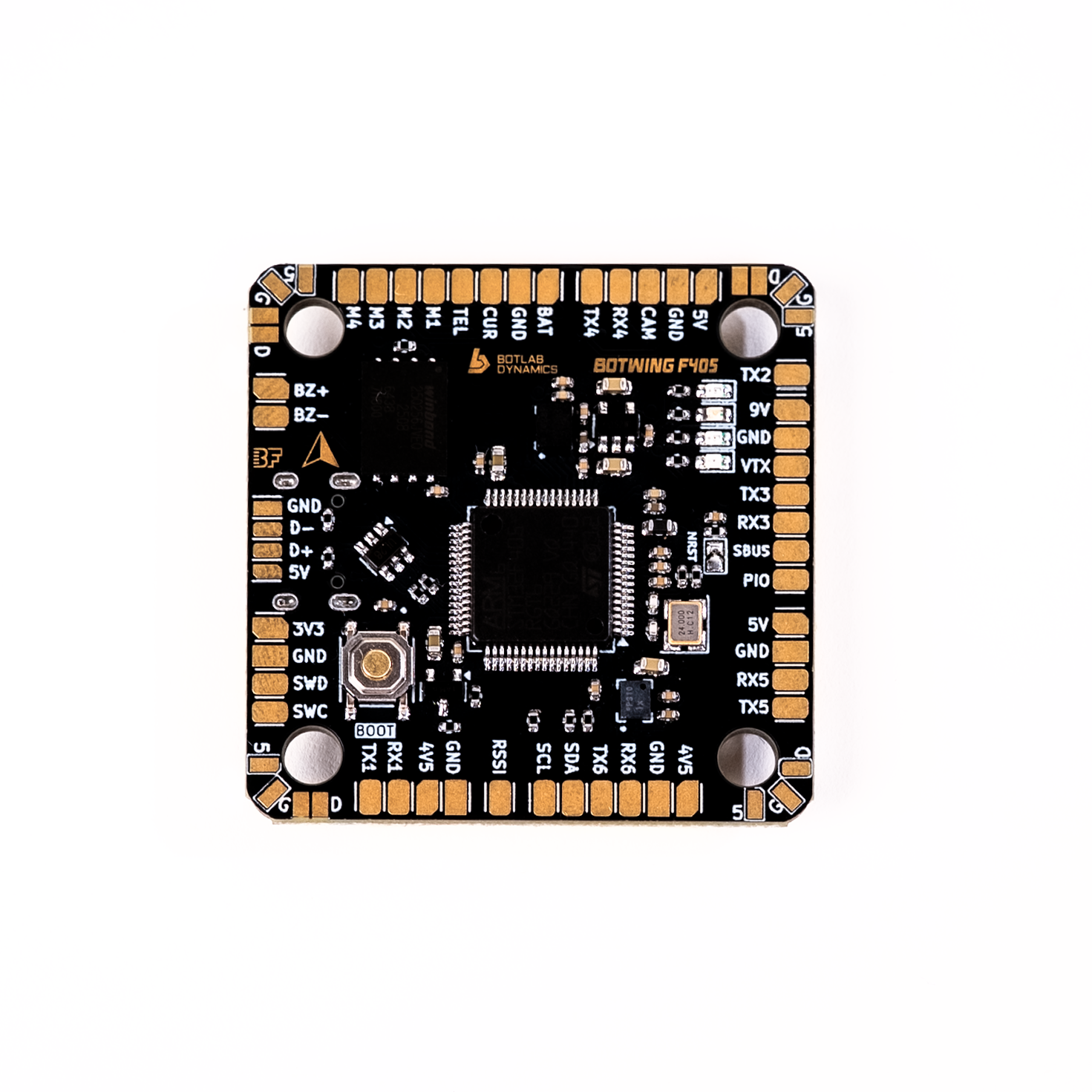

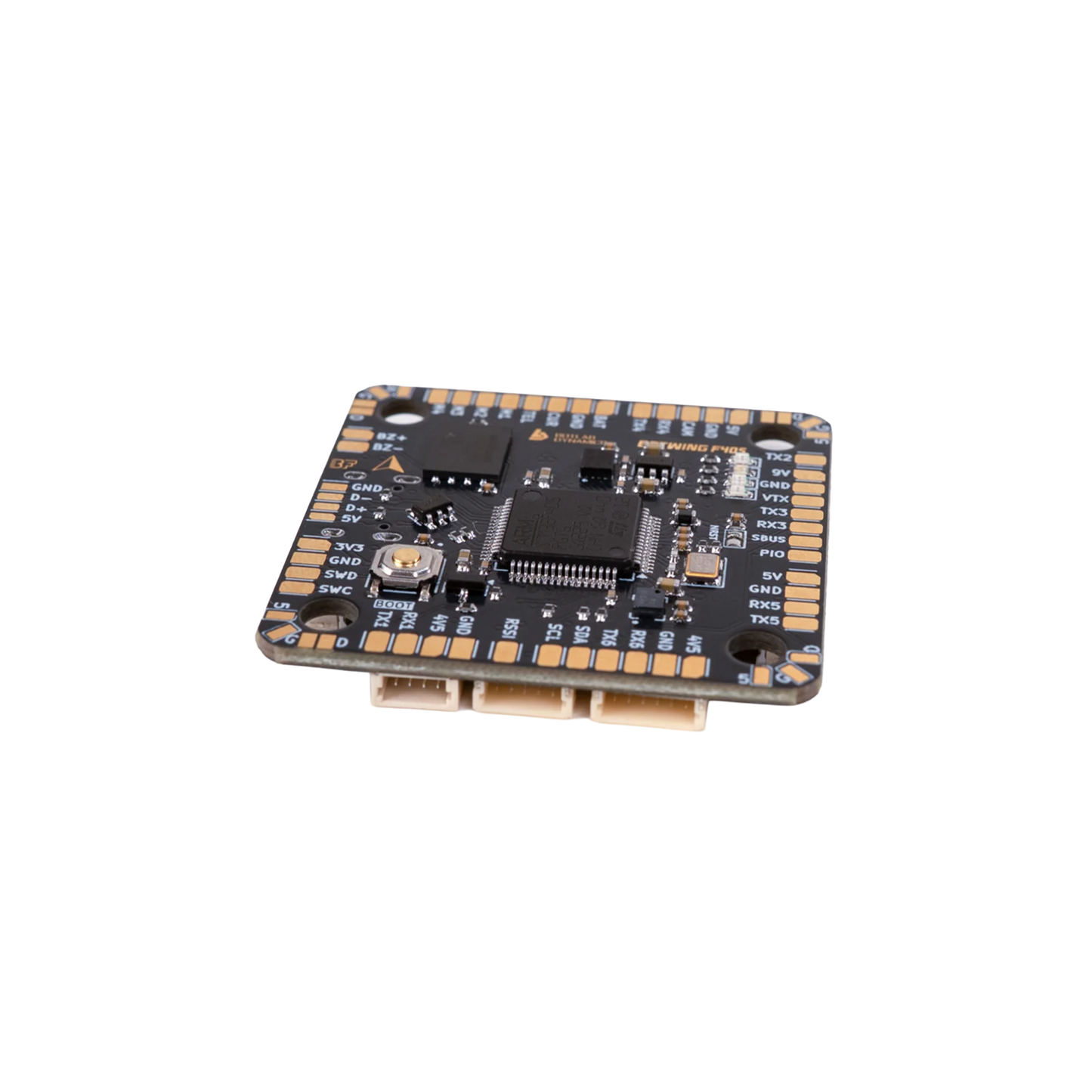

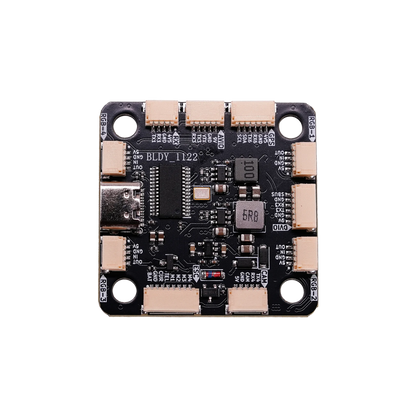

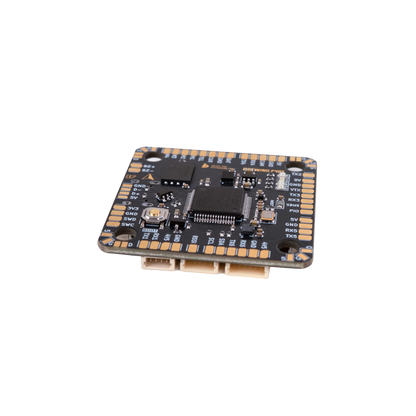

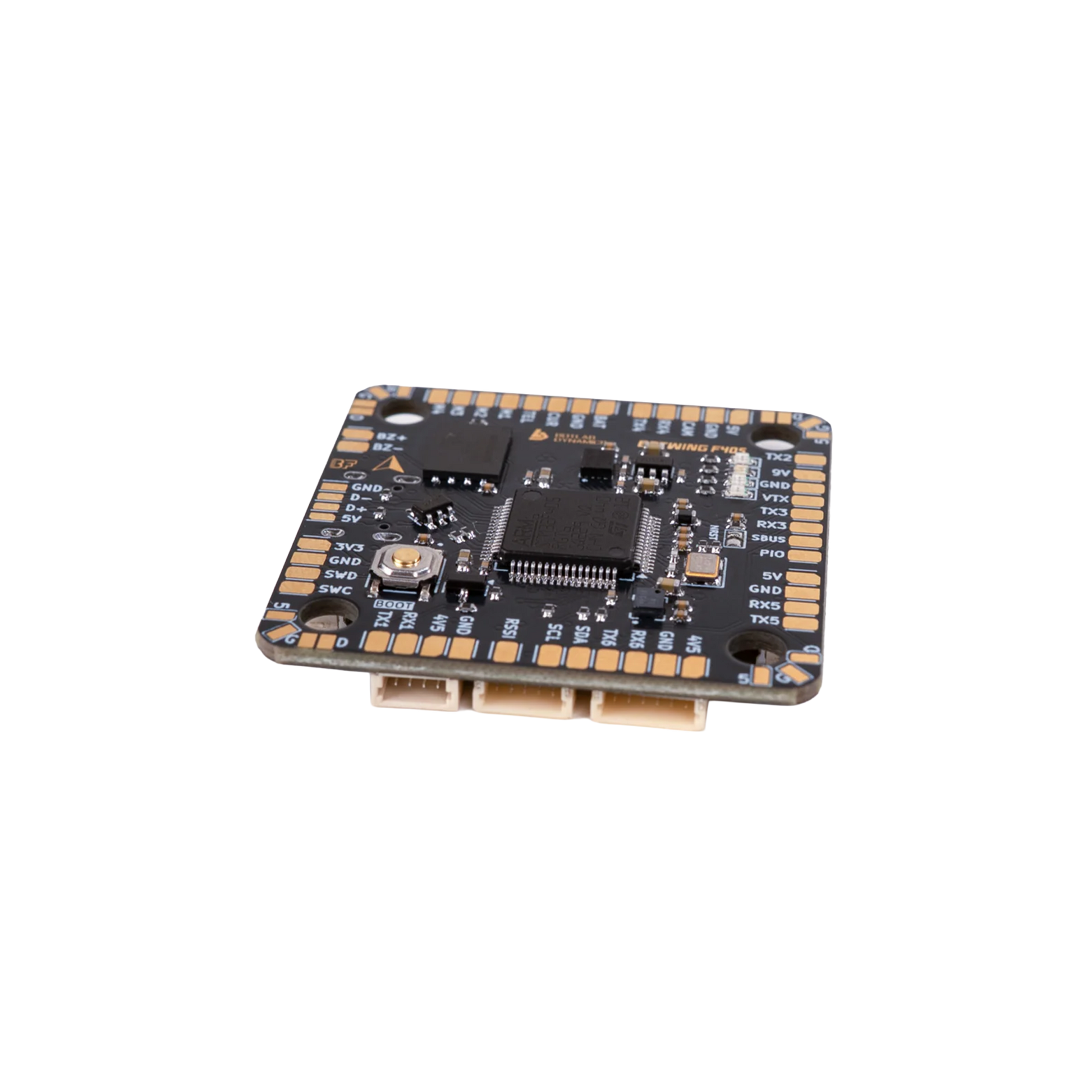

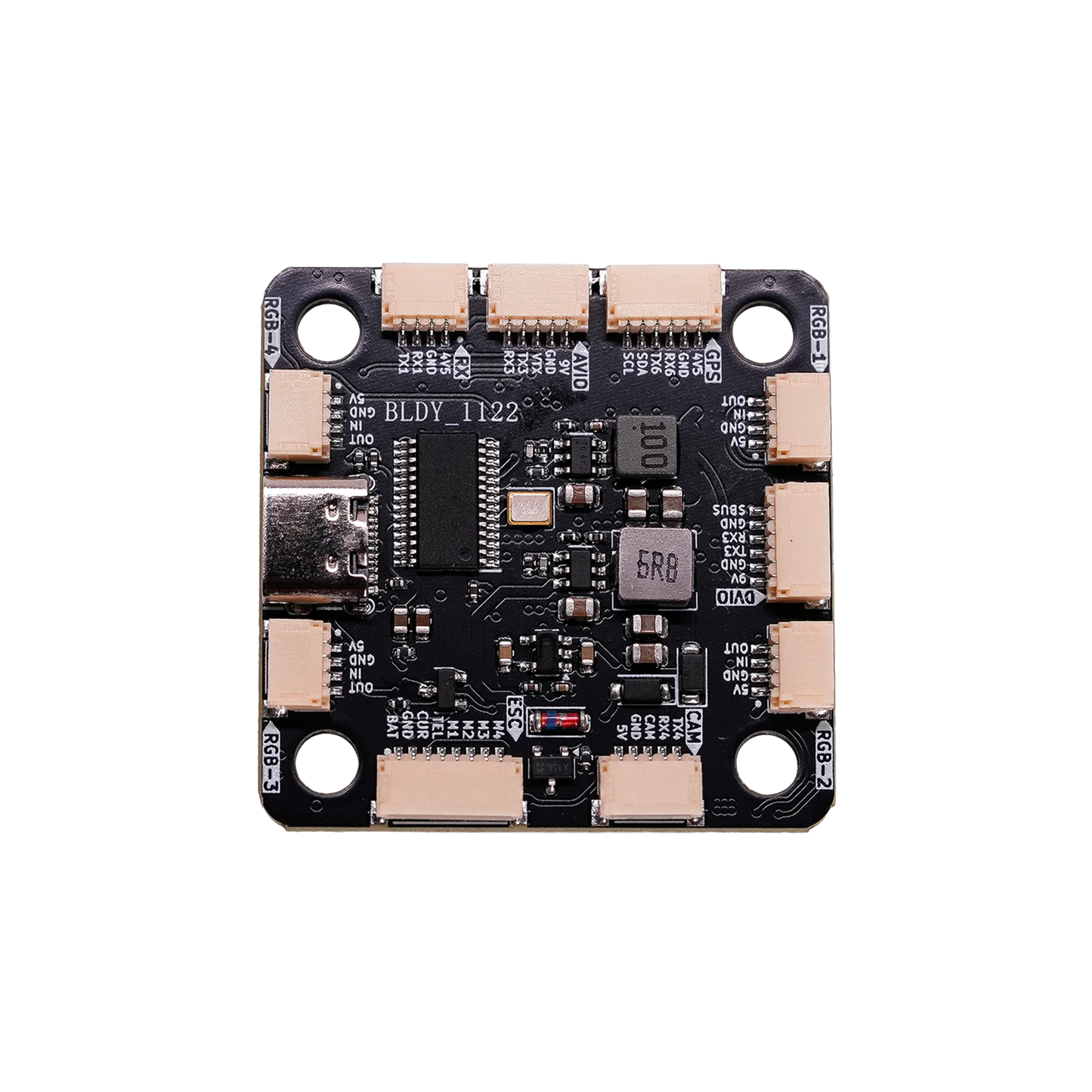

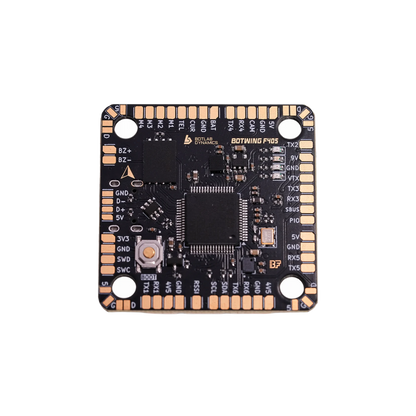

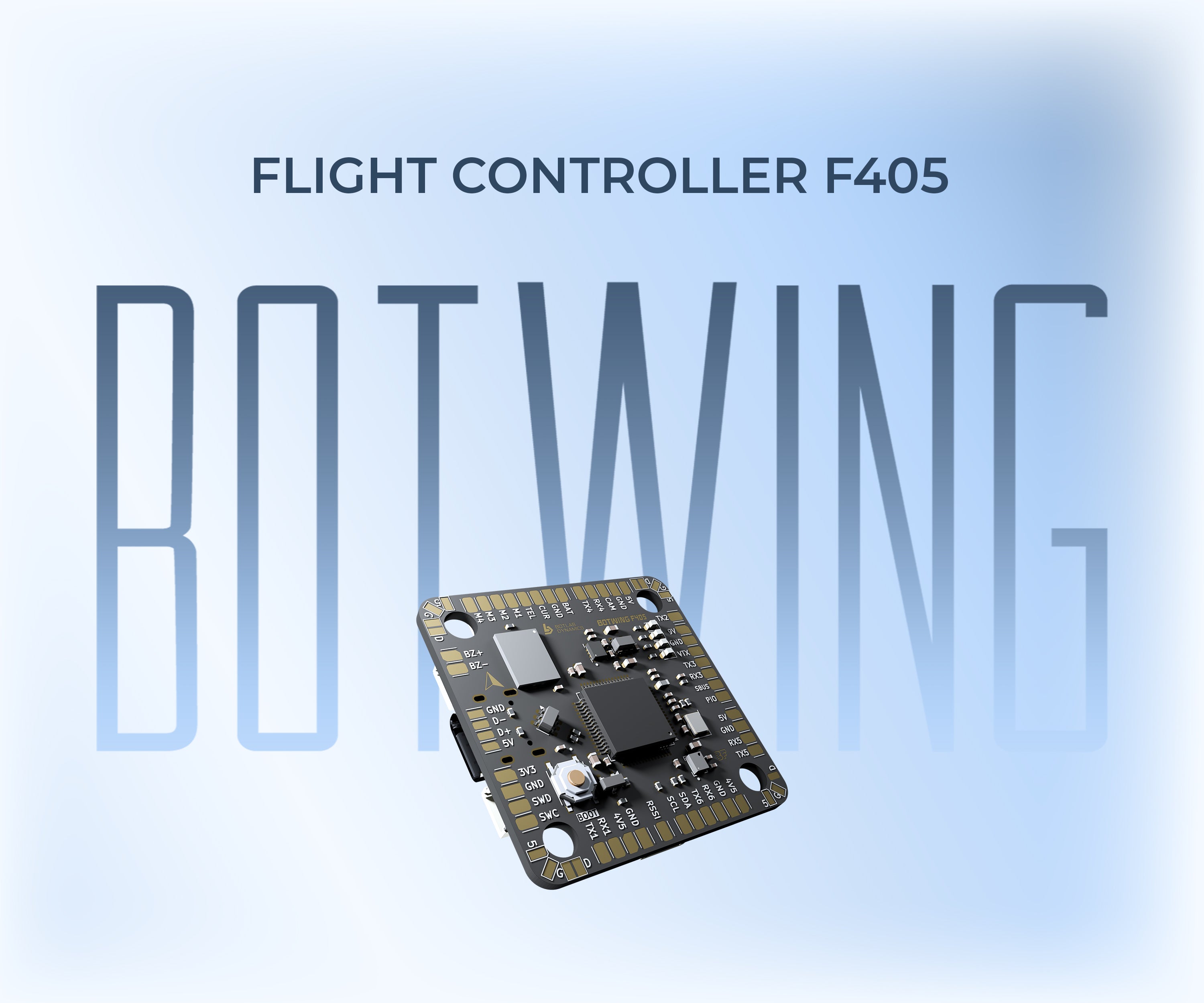

BotWing F405 Flight Controller (Solderless Design)

BotWing F405 Flight Controller (Solderless Design)

Rs. 3,999.00
Rs. 6,899.00 Rs. 3,999.00
Sale Sold out
Shipping calculated at checkout.

BotWing F405 Guide

BotWing F405_Ardupilot Guide

Firmware_arducopter

Firmware_Arducopter_SERVO (While using the servo firmware, you will not be able to use the LEDs)

Firmware_betaflight

Firmware_inav

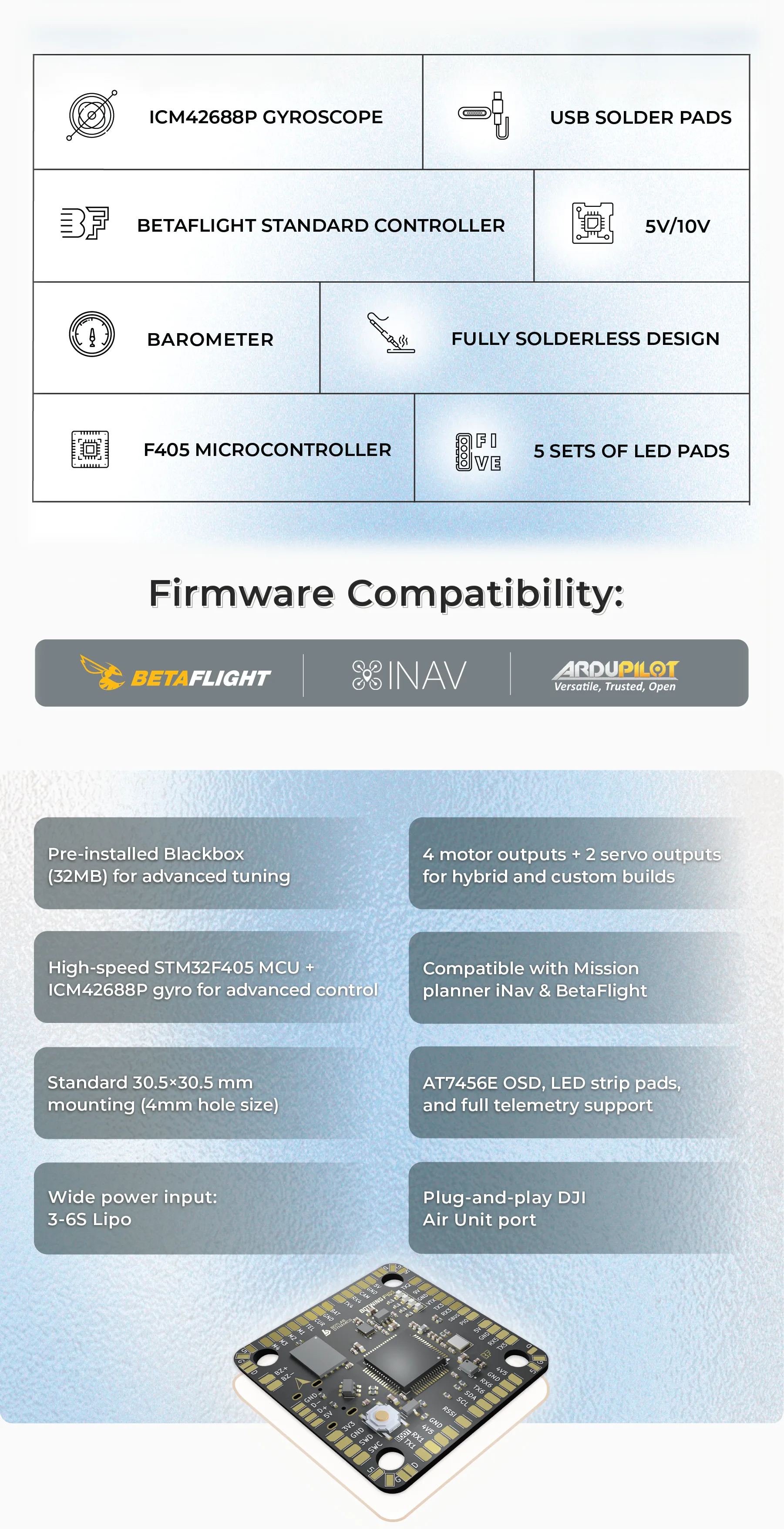

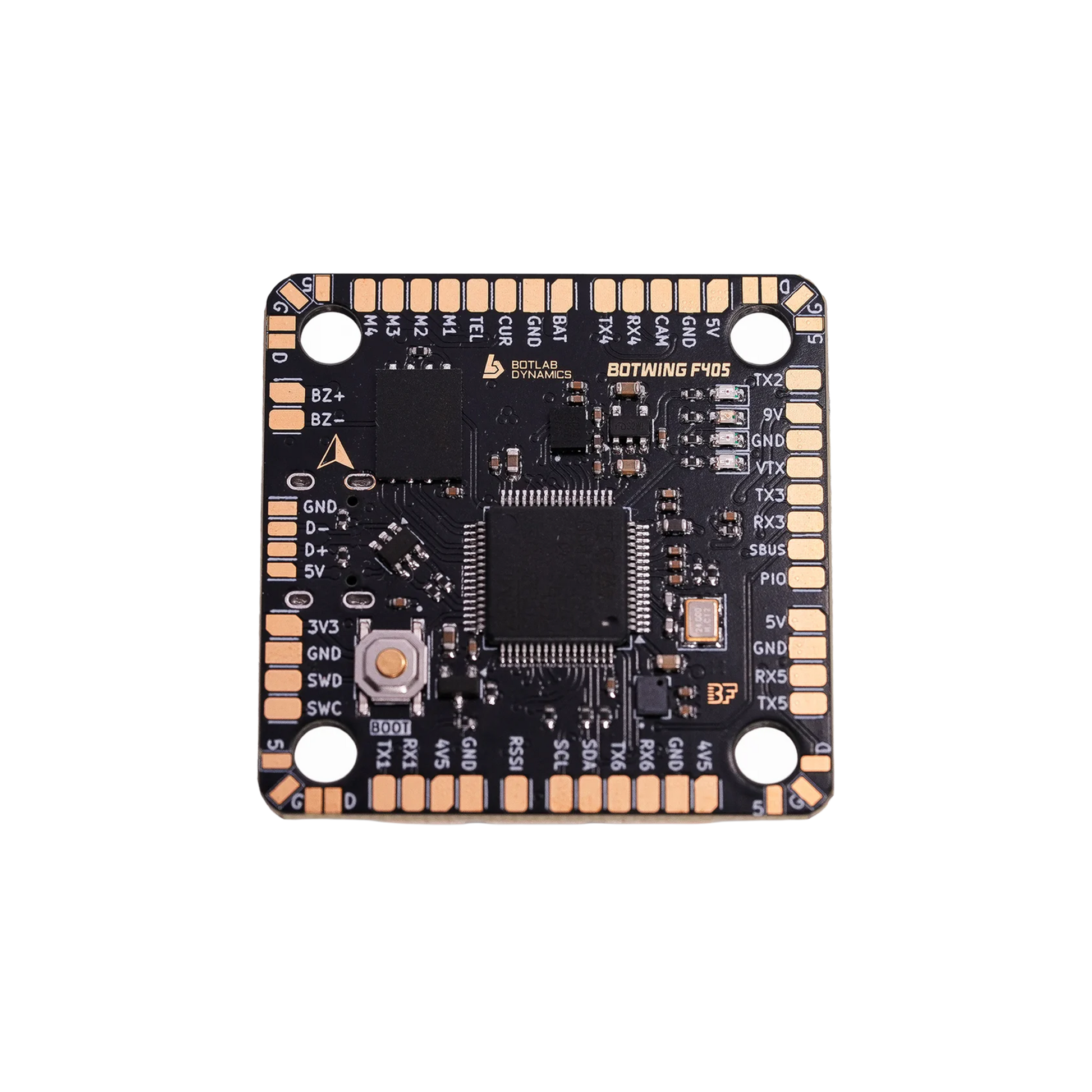

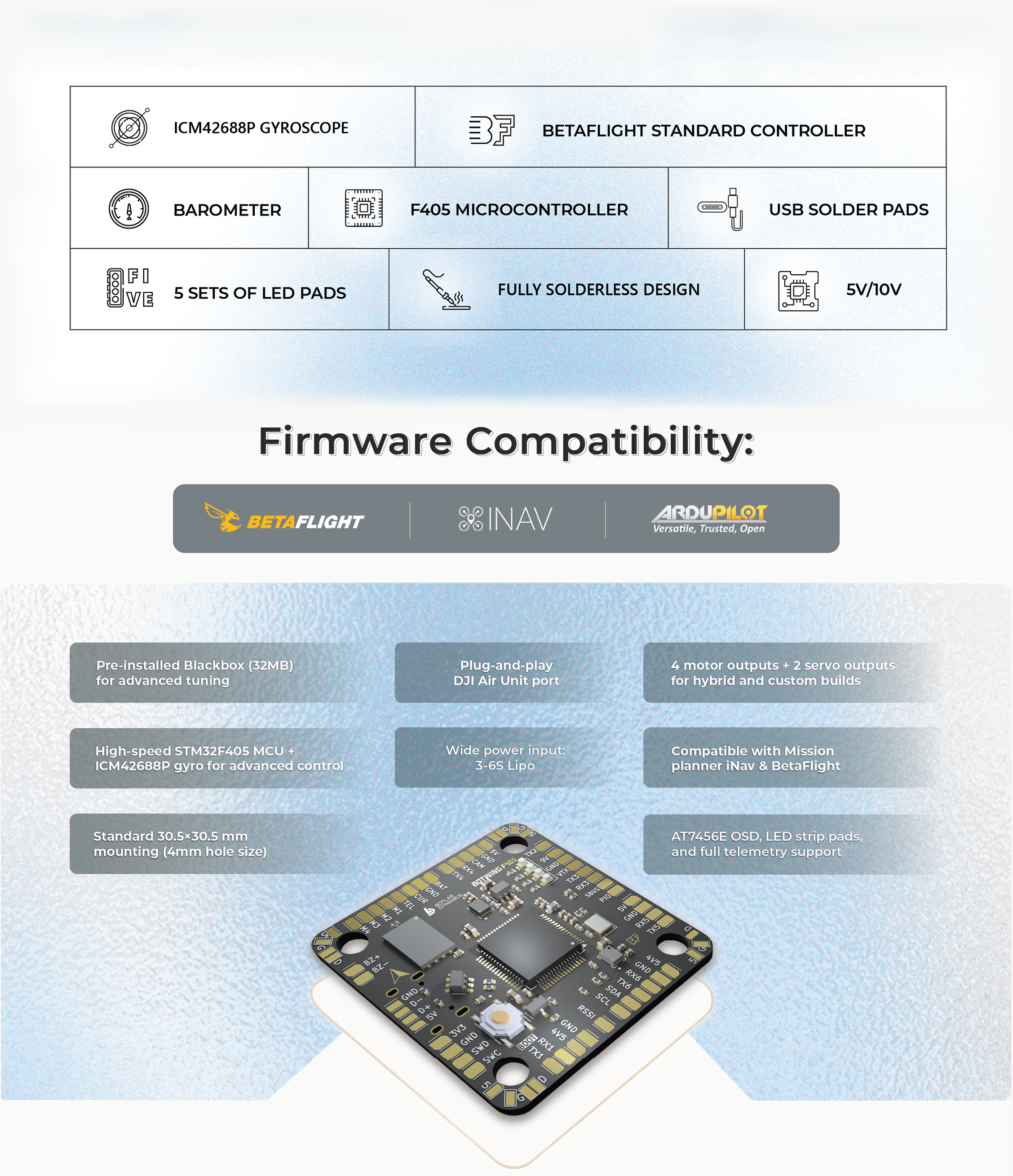

    • Easy Setup and Wide Compatibility: Solderless 30.5 × 30.5 mm design for easy setup and broad compatibility with Mission Planner, iNav, and Betaflight.
    • Powerful Performance: Supports 3-6S LiPo batteries to deliver consistent power for your drone.
    • Advanced Drone Controller: Features 4 motor outputs, 32 MB Blackbox, OSD, DJI Air Unit support, Type-C USB, and i2C for GPS/sonar.
    • Customizable Lighting: Built-in status LEDs with LED strip support (parallel or series).
    • Simple Firmware Updates: Flash easily through Betaflight Configurator with DFU mode.

    The F405 Flight Controller is an excellent choice for drones offering reliability and versatility. It stands out as a top-flight controller board for those seeking high-performance flying.

    • 1-Year Warranty
    • Free Delivery above 1499
    • Proudly Made in India
    • Delhi-NCR Same day Delivery
    • Cash on Delivery Available
    • Pan-India Shipping
    View full details

    FAQs

    1. Which MCU/Core does it use?

    The BotWing F405 Flight Controller uses the STM32F405 MCU.

    2. Which IMU/gyro-accelerometer sensor does it use?

    The BotWing F405 Flight Controller uses ICM42688P gyro-accelerometer

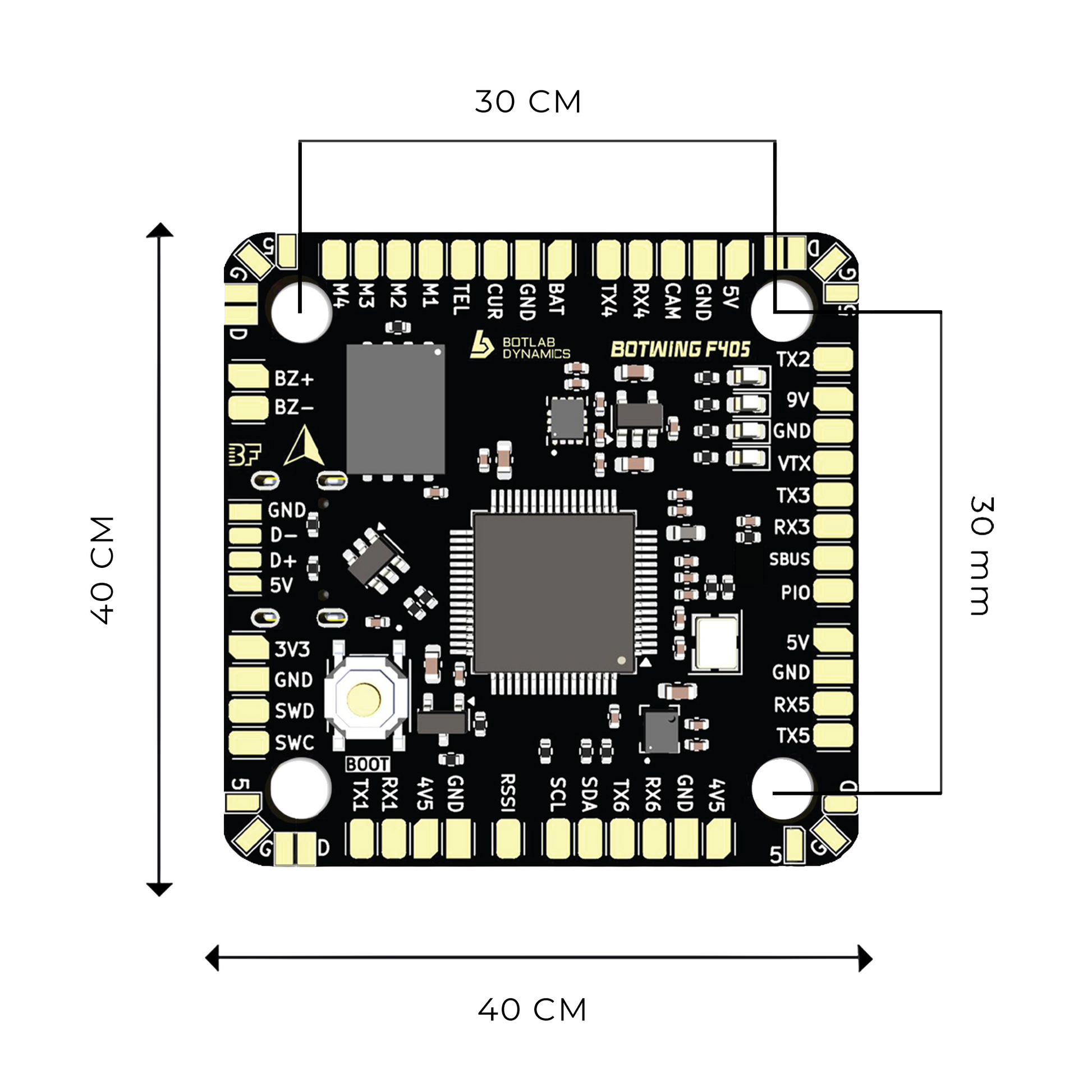

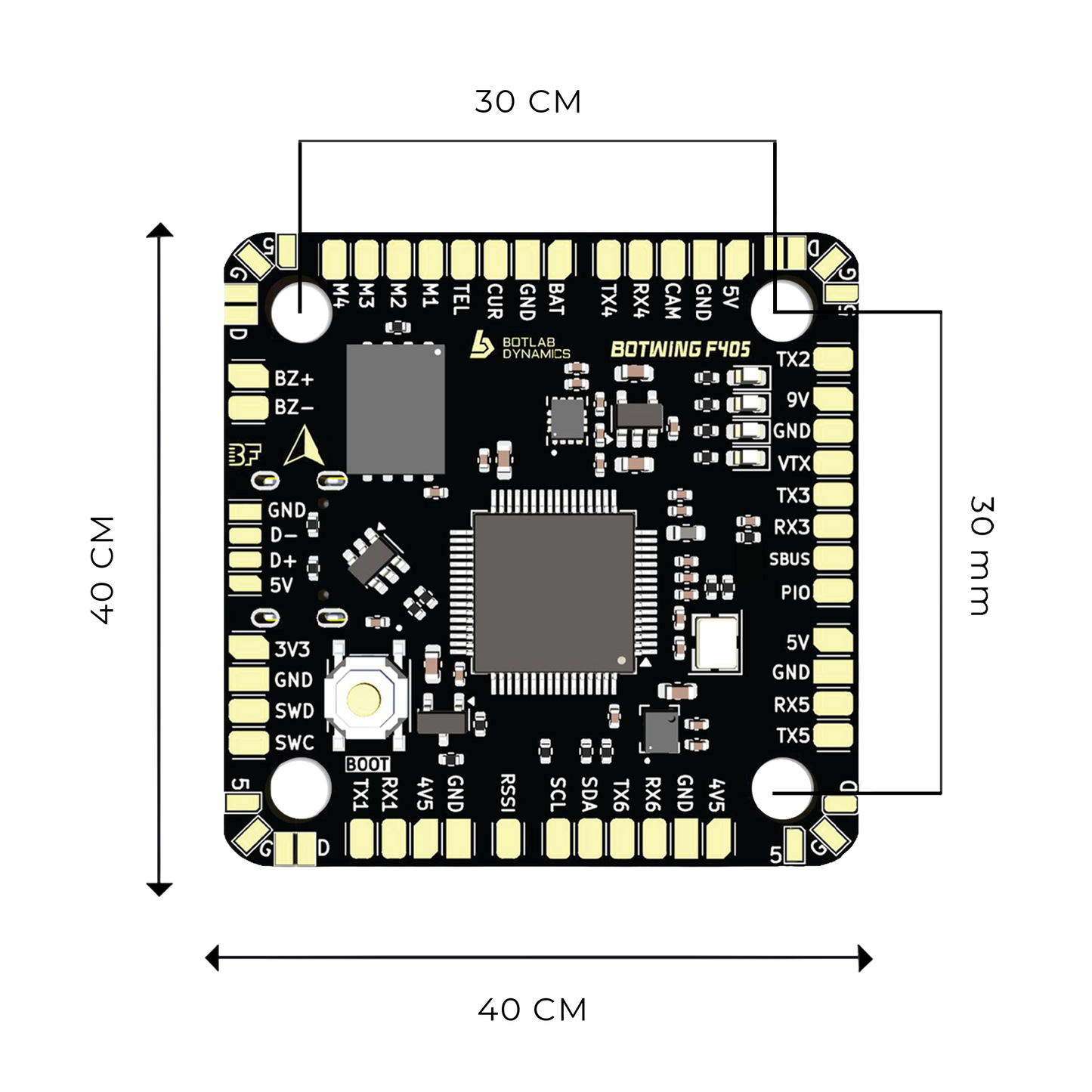

    3. What board size and mounting pattern does the F407 flight controller have?

    It has a 40×40 mm board and 30.5 × 30.5 mm mounting

    4. What voltage/battery range does it accept?

    The BotWing F405 Flight Controller accepts a voltage range from 2-6S LiPo.

    5. How many UART ports?

    It has a total of 6 UARTs

    6. Does it have on-board OSD?

    Yes, the BotWing F405 Flight Controller contains an AT7456E OSD chip.

    7. Does it include black box logging?

    The BotWing F405 Flight Controller has a 32 MB Winbond memory that supports black box logging.

    8. Does it support the plug-and-play DJI Air Unit?

    Yes, it has direct 6-pin plug support.

    9. Which flight firmware is supported?

    The BotWing F405 Flight Controller is highly compatible with all the major firmwares like Betaflight, iNav, and Mission Planner/ArduPilot.

    10. What voltage outputs are available in the F405 Flight Controller (BEC, camera, etc.)?

    It has multiple voltage outputs like 5V, 9V, 4.5V, 3.3V, etc.

    11. What is the board weight?

    The board weight is ~10 g.

    12. What is the height/thickness?

    The thickness of the board is ~18 mm.

    13. Does it support a barometer?

    Yes, the BotWing F405 Flight Controller does support a DPS310 barometer.

    14. Is the board conformal-coated (water/dust protection)?

    No, the board is not conformally coated; the user can do that on their own.
