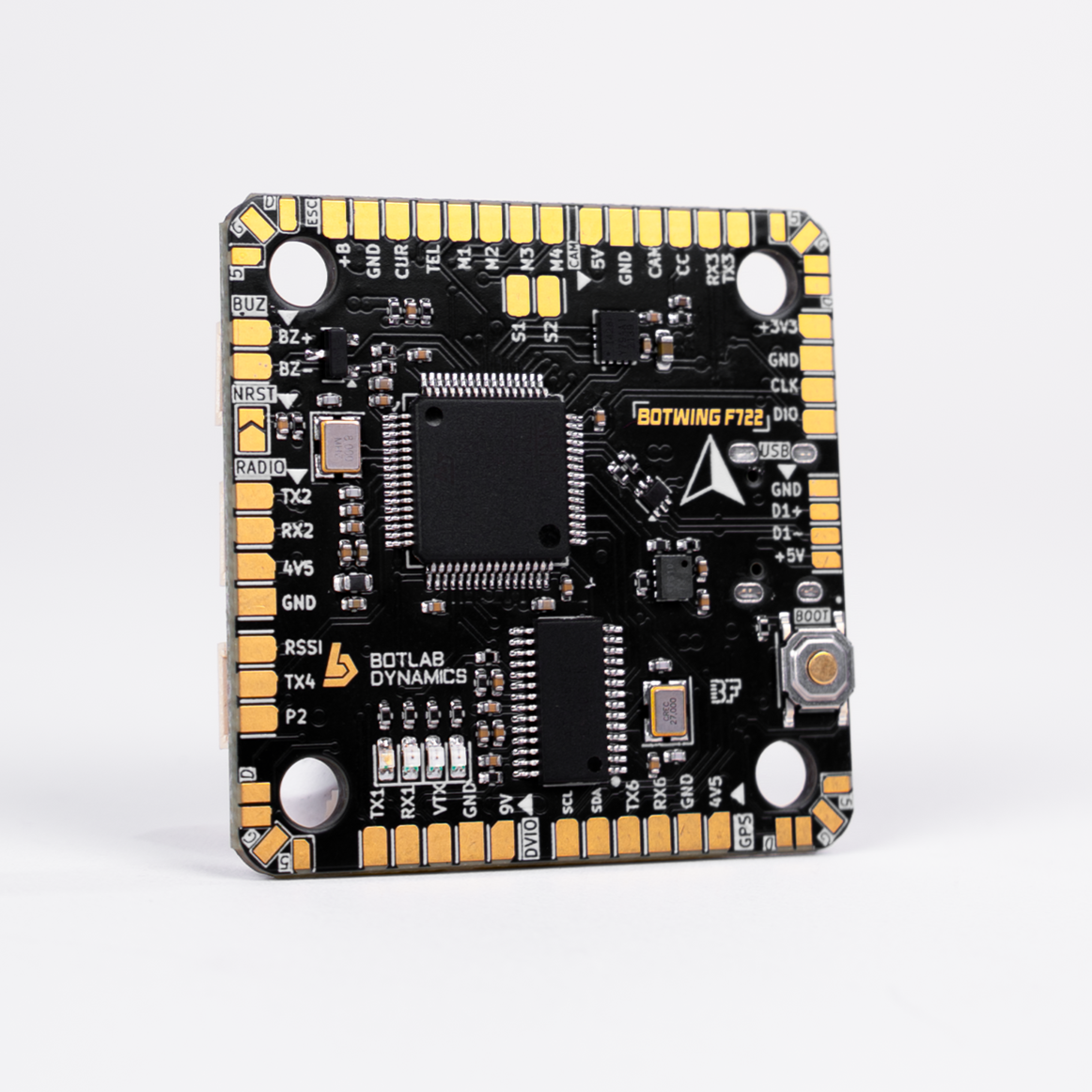

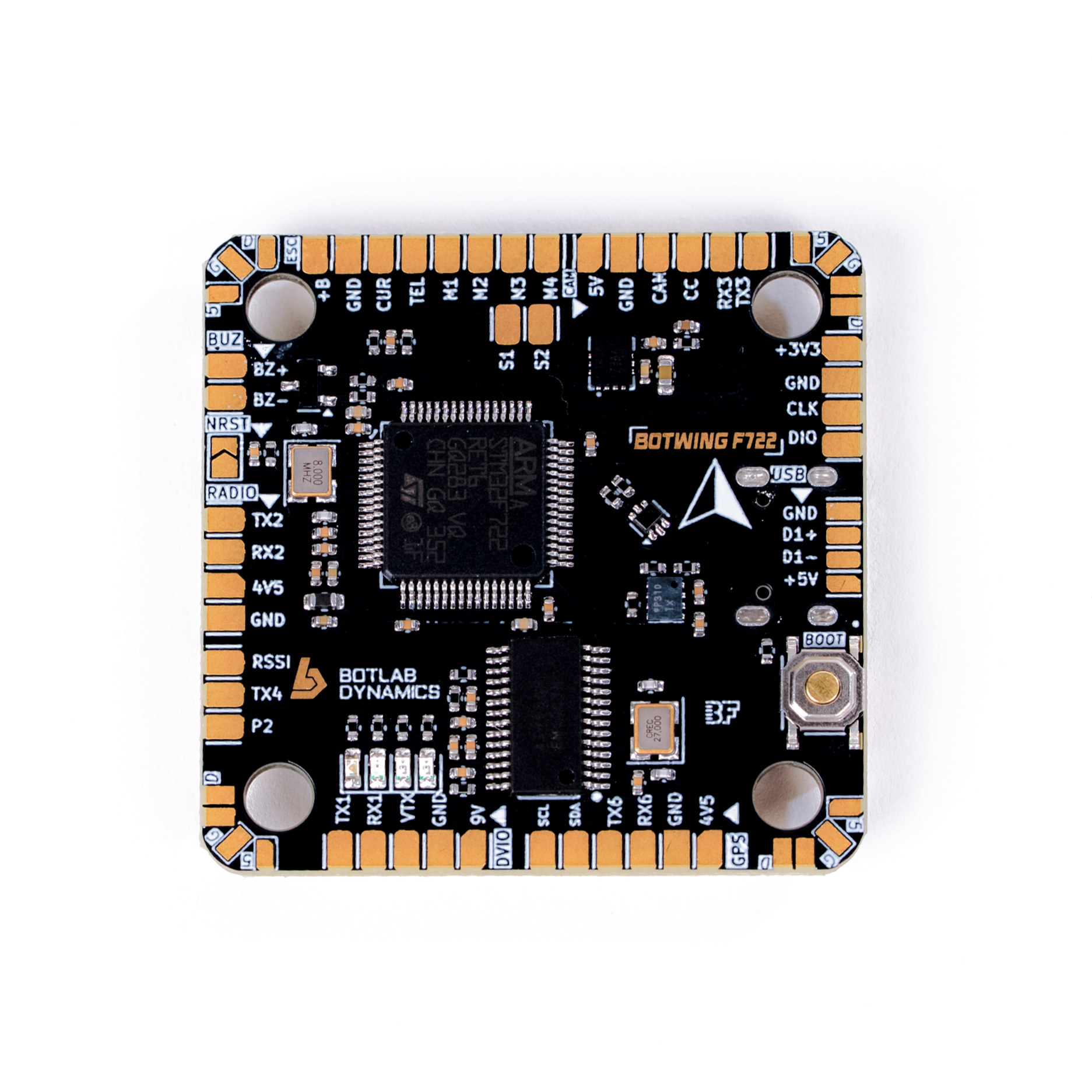

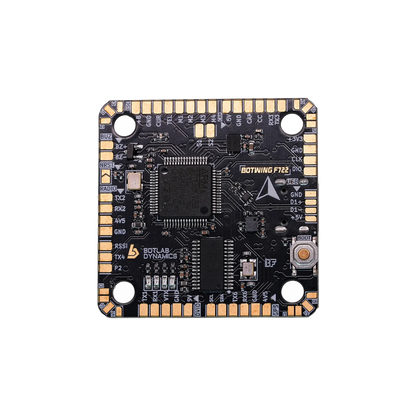

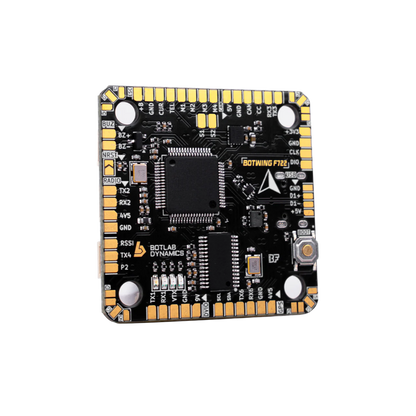

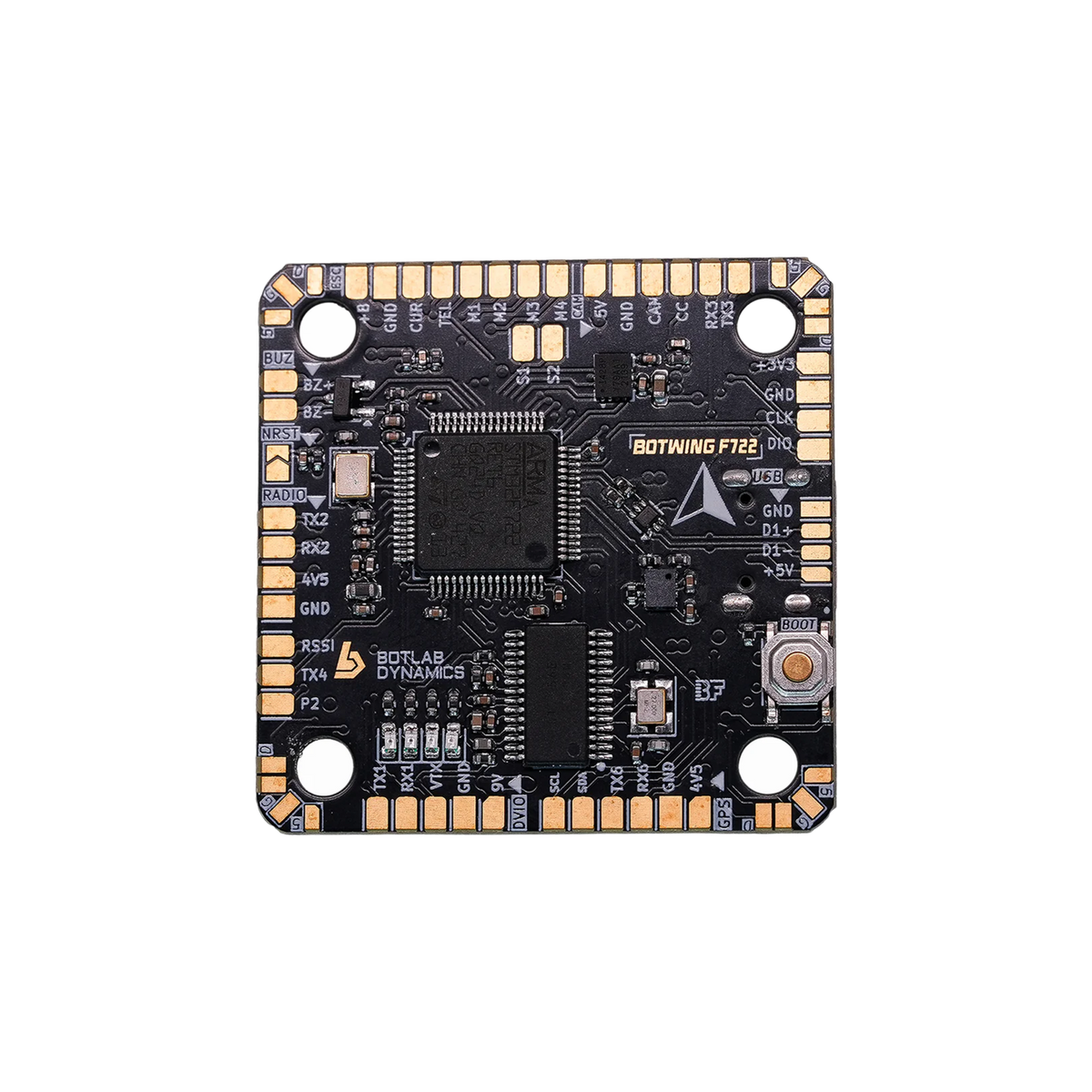

About F722

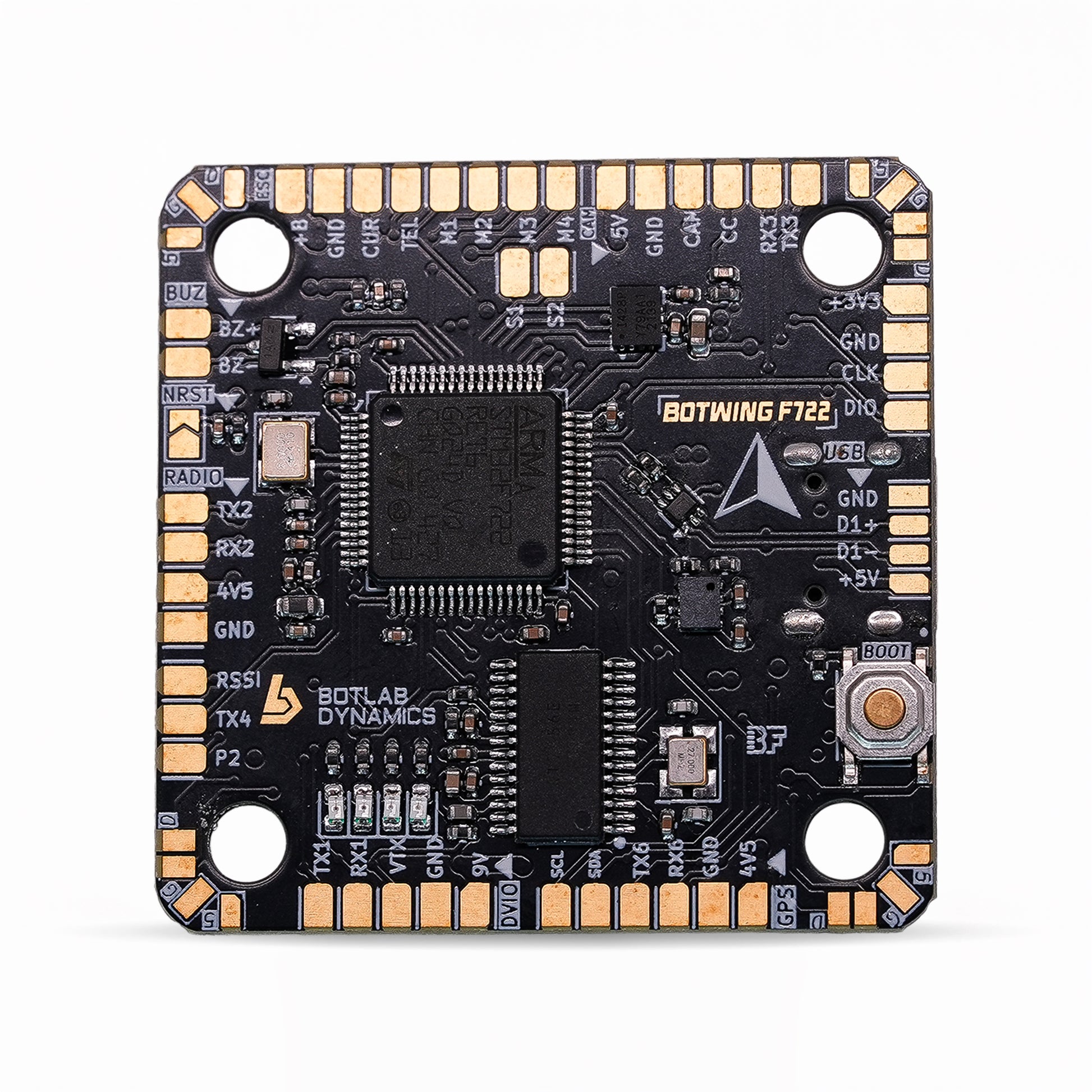

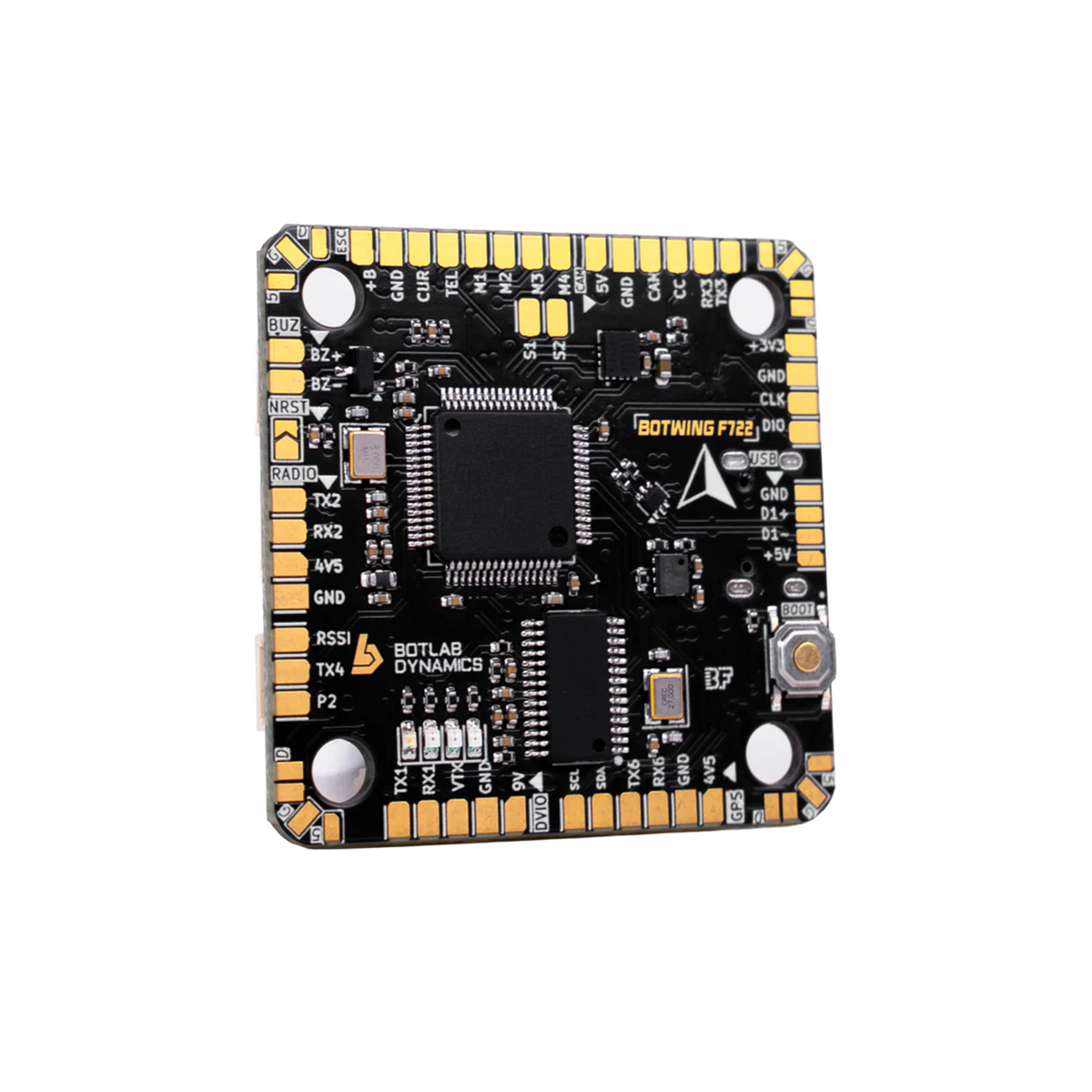

Power meets precision with BotWing F722, the elite flight controller for pilots who demand total control. Built with the powerful STM32F722 MCU and ICM42688P gyro, BotWing F722 offers expanded capabilities including 4 motor outputs and 2 servo outputs - ideal for advanced drone configurations.

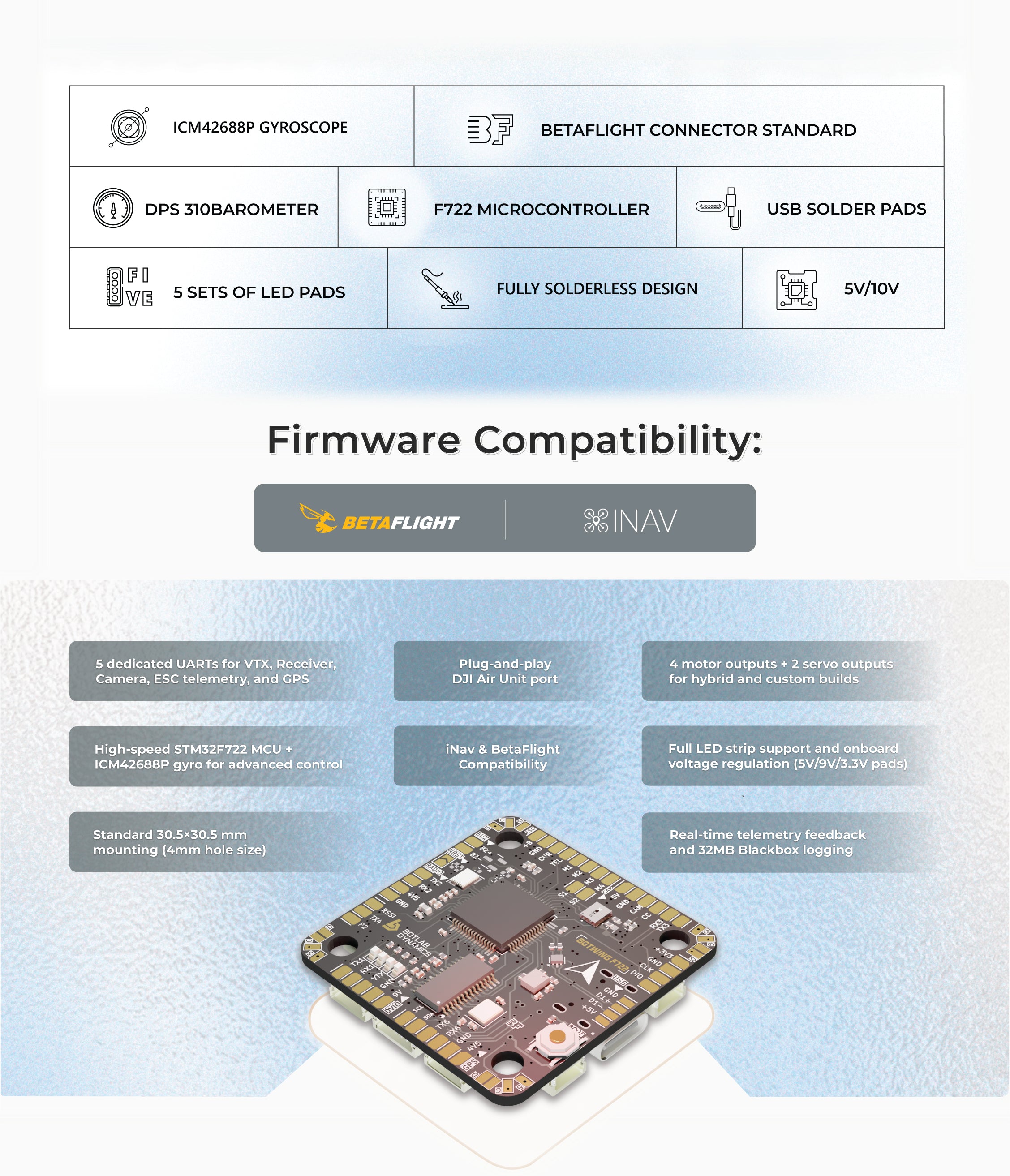

With full compatibility with BetaFlight and iNav, BotWing F722 unlocks powerful mission planning and autonomous navigation, giving you the freedom to design complex flight missions with confidence. Its robust telemetry, 32MB onboard Blackbox, plug-and-play DJI Air Unit port, and flexible 5 UART layout make it the perfect heart for serious builds.
Whether you're racing, exploring, mapping, or executing precision flights, BotWing F722 ensures flawless execution and endless potential - all housed within a clean 30.5x30.5mm mounting holes.
FAQs
Which MCU/processor does it use?
The Botwing F722 Flight Controller uses an STM32F722 processor.
Which IMU/gyro is included in the Botwing F722 Flight Controller?
The Botwing F722 Flight Controller includes an ICM42688P gyro.
Does it have onboard OSD & black box memory?
Yes, the Botwing F722 Flight Controller have AT7456E OSD + 32 MB blackbox.
What is its input voltage/LiPo support?
It has an input voltage of 2S to 6S LiPo.
How many UART ports does it provide?
The Botwing F722 Flight Controller provides 5 UARTs
Which flight firmware is supported?
The Botwing F722 Flight Controller supports Betaflight and iNav.
What is its size/mounting pattern?
The Botwing F722 Flight Controller has a 30.5 mm × 30.5 mm mounting.
Does it support the DJI Air Unit/direct plug?
Yes, the Botwing F722 Flight Controller supports the DJI Air Unit.
How many motors/servos can it drive?
It can drive 4 motors + 2 servos.
What additional features (LED, telemetry, etc.) are supported?
LED strips, ESC telemetry, and camera & VTX control are all supported by the Botwing F722 Flight Controller.
Can the black box memory be expanded (via MicroSD), or is it fixed?
No, it's fixed at 32 MB.
Does it have a boot button or DFU mode for firmware flashing?
Yes, it supports DFU/boot mode flashing.
